TOYOTA DYNA WU90L-MDDT / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

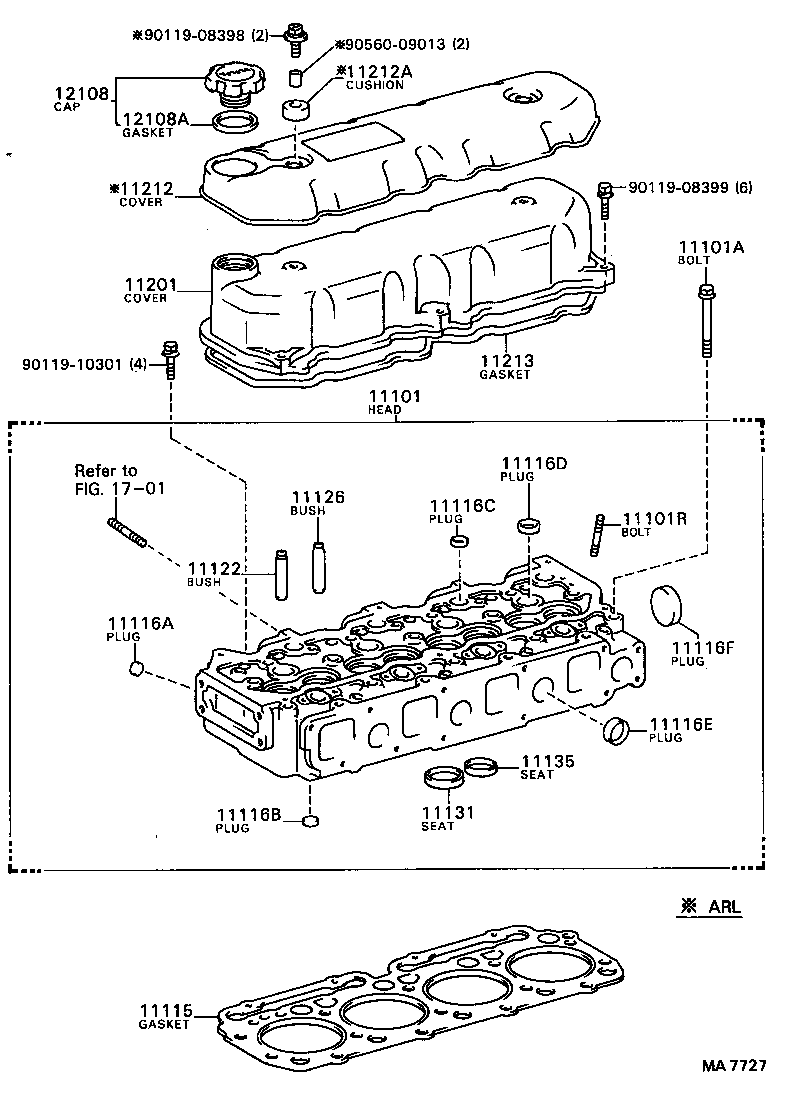

CYLINDER HEAD

(8409- )1W

 DYNA |  CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101R - BOLT, STUD(FOR FUEL PIPE) 11115 - GASKET, CYLINDER HEAD 11116A - PLUG, TIGHT, NO.1 11116B - PLUG, TIGHT, NO.2 11116C - PLUG, TIGHT, NO.3 11116D - PLUG, TIGHT, NO.4 11116E - PLUG, TIGHT, NO.5 11116F - PLUG, TIGHT, NO.6 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11201 - COVER SUB-ASSY, CYLINDER HEAD 11212 - COVER, CYLINDER HEAD, NO.2 11212A - CUSHION, CYLINDER HEAD COVER 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part
