TOYOTA TOYOACE RY30R-JDLT / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

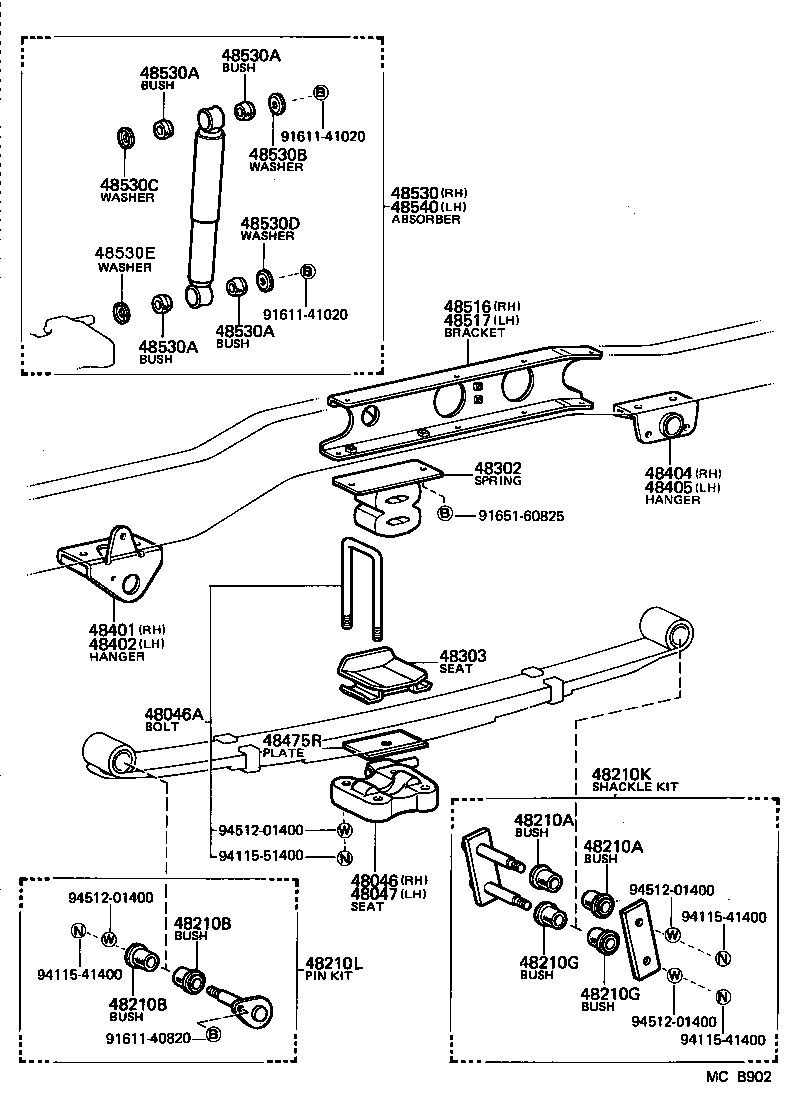

REAR SPRING SHOCK ABSORBER

(8409- )WT

 TOYOACE |  REAR SPRING SHOCK ABSORBER 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046A - BOLT, U(FOR REAR SPRING) 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210B - BUSH(FOR REAR SPRING PIN) 48210B - BUSH(FOR REAR SPRING PIN) 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) 48210K - SHACKLE KIT, REAR SPRING 48210L - PIN KIT, REAR SPRING 48302 - SPRING SUB-ASSY, HOLLOW 48303 - SEAT SUB-ASSY, HOLLOW SPRING 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH 48475R - PLATE, DISTANCE(FOR REAR) 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 48540 - ABSORBER ASSY, SHOCK, REAR LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
