TOYOTA MODEL F YR31LG-MQEW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

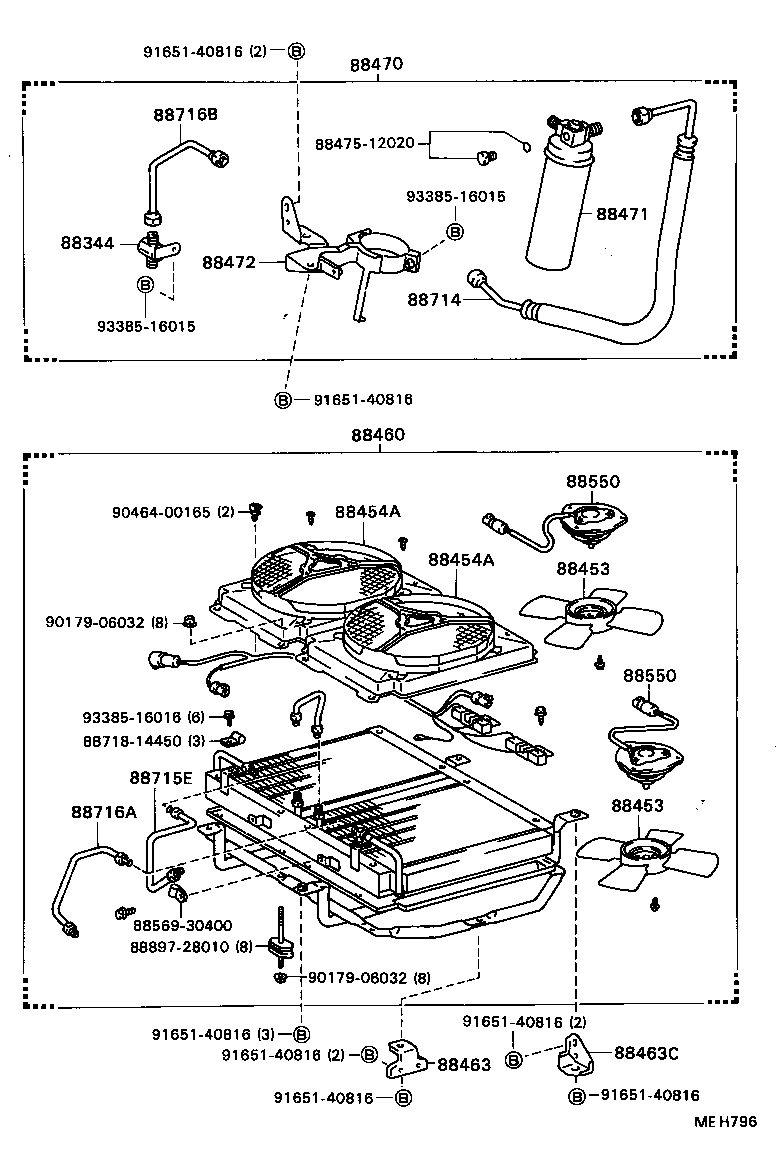

ILLUST NO. 1 OF 3(8601- )YR31

MODEL F | HEATING AIR CONDITIONING COOLER PIPING 88344 - GLASS SUB-ASSY, SIGHT 88453 - FAN, COOLING (FOR CONDENSER) 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88463 - BRACKET, COOLER CONDENSER, NO.1 88463C - BRACKET, COOLER CONDENSER, NO.4 88470 - RECEIVER & DRYER ASSY, COOLER 88471 - TANK, RECEIVER AIR CONDITIONER 88472 - BRACKET, RECEIVER TANK, NO.1 ** Std Part 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
