TOYOTA VAN YR31LG-PDEK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

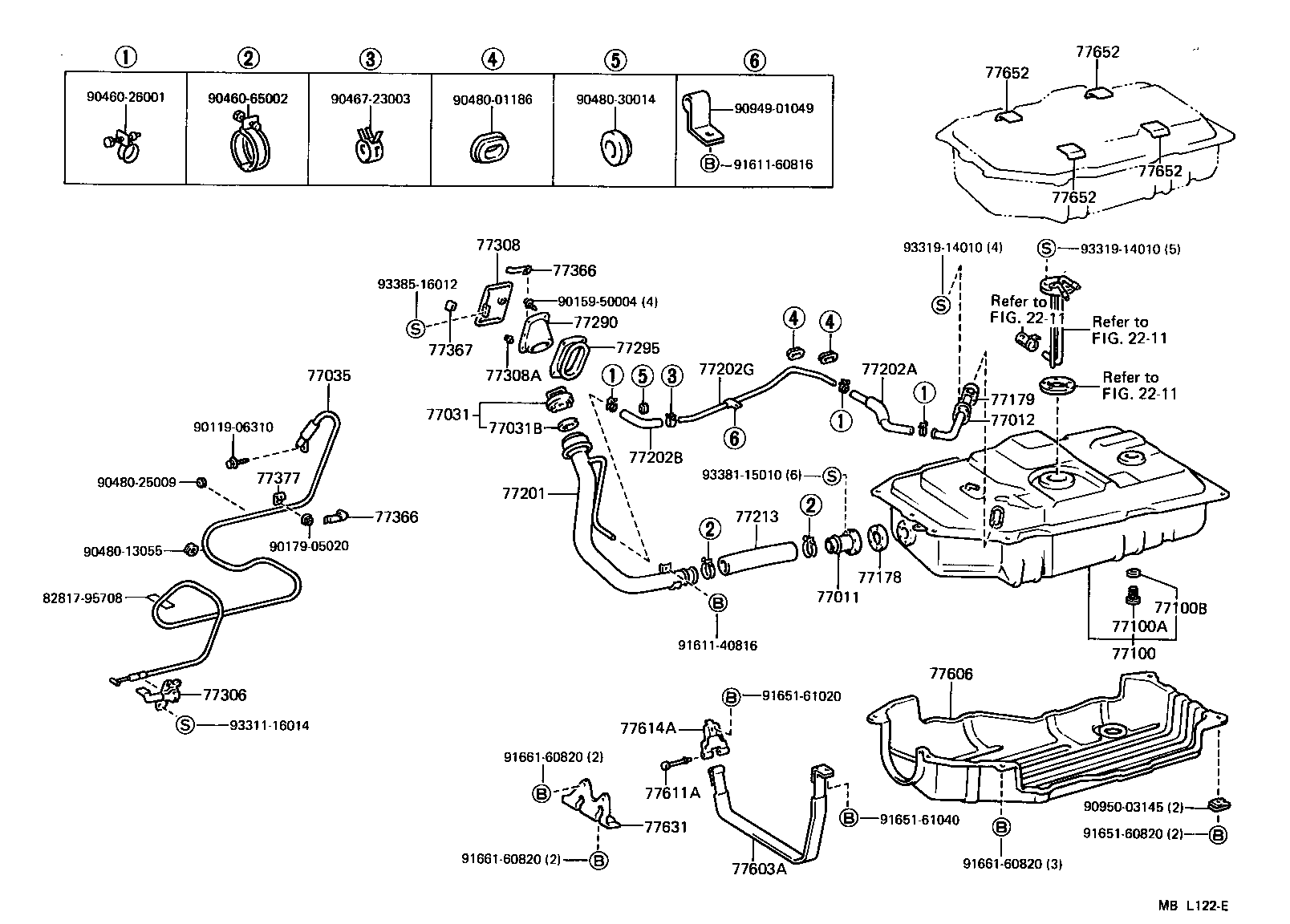

ILLUST NO. 1 OF 2(8608- )YR3#

 VAN |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179 - RETAINER, FUEL TANK MOUNTING, FRONT 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) 77202G - TUBE, FUEL, NO.2 (FOR BREATHER TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77295 - SHIELD, FUEL FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77308 - COVER SUB-ASSY, FUEL INLET BOX 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77367 - STOPPER, FUEL FILLER OPENING LID 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77614A - BAND, FUEL TANK, NO.2 RH 77631 - BRACKET, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1 77652 - CUSHION, FUEL TANK, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
