TOYOTA CRESSIDA WAGON RX73R-XEPNSN / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING CONTROL AIR DUCT

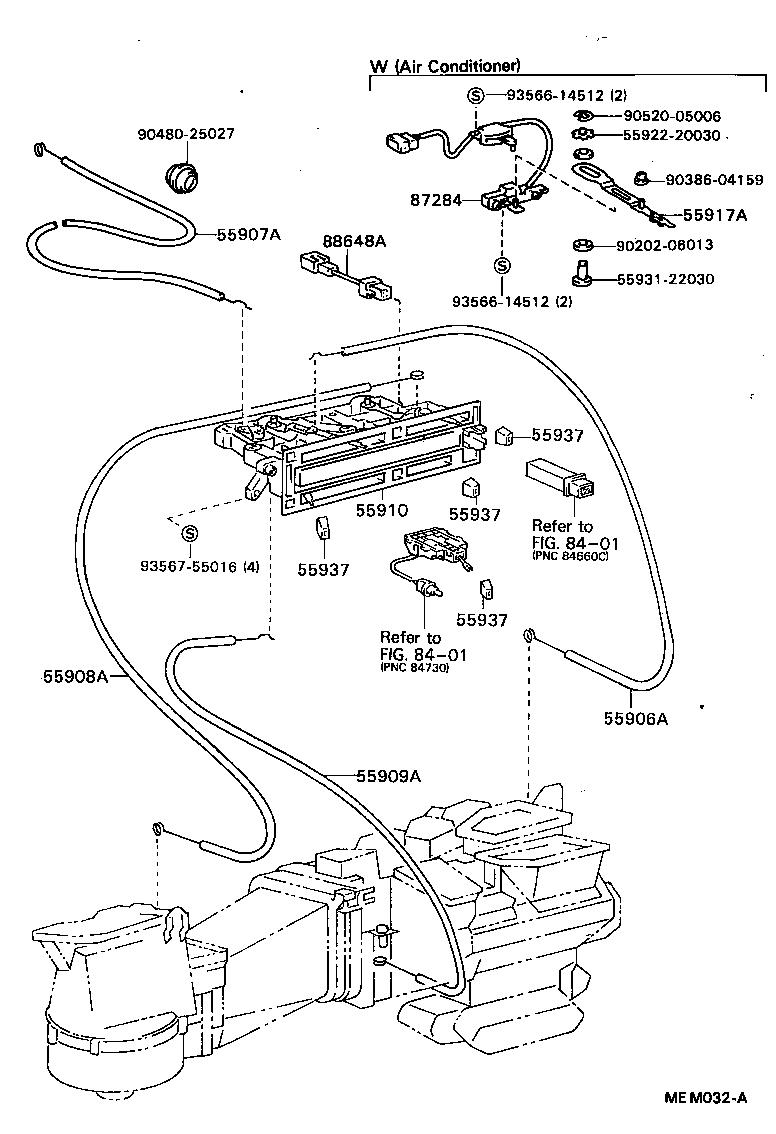

CONTROL PANEL ILLUST NO. 1 OF 3(8810-9302)RX7#..RHD ; (8812-9205)MX75,YX72..5F

CRESSIDA WAGON | HEATING AIR CONDITIONING CONTROL AIR DUCT 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR 55917A - LEVER, TEMPERATURE DAMPER CONTROL ** Std Part ** Std Part 55937 - KNOB, HEATER CONTROL LEVER 55937 - KNOB, HEATER CONTROL LEVER 55937 - KNOB, HEATER CONTROL LEVER 55937 - KNOB, HEATER CONTROL LEVER ** Refer Fig ** Refer Fig 87284 - RESISTOR SUB-ASSY, VARIABLE 88648A - WIRING, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
