TOYOTA CARINA 2 AT171L-AWMDUW / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

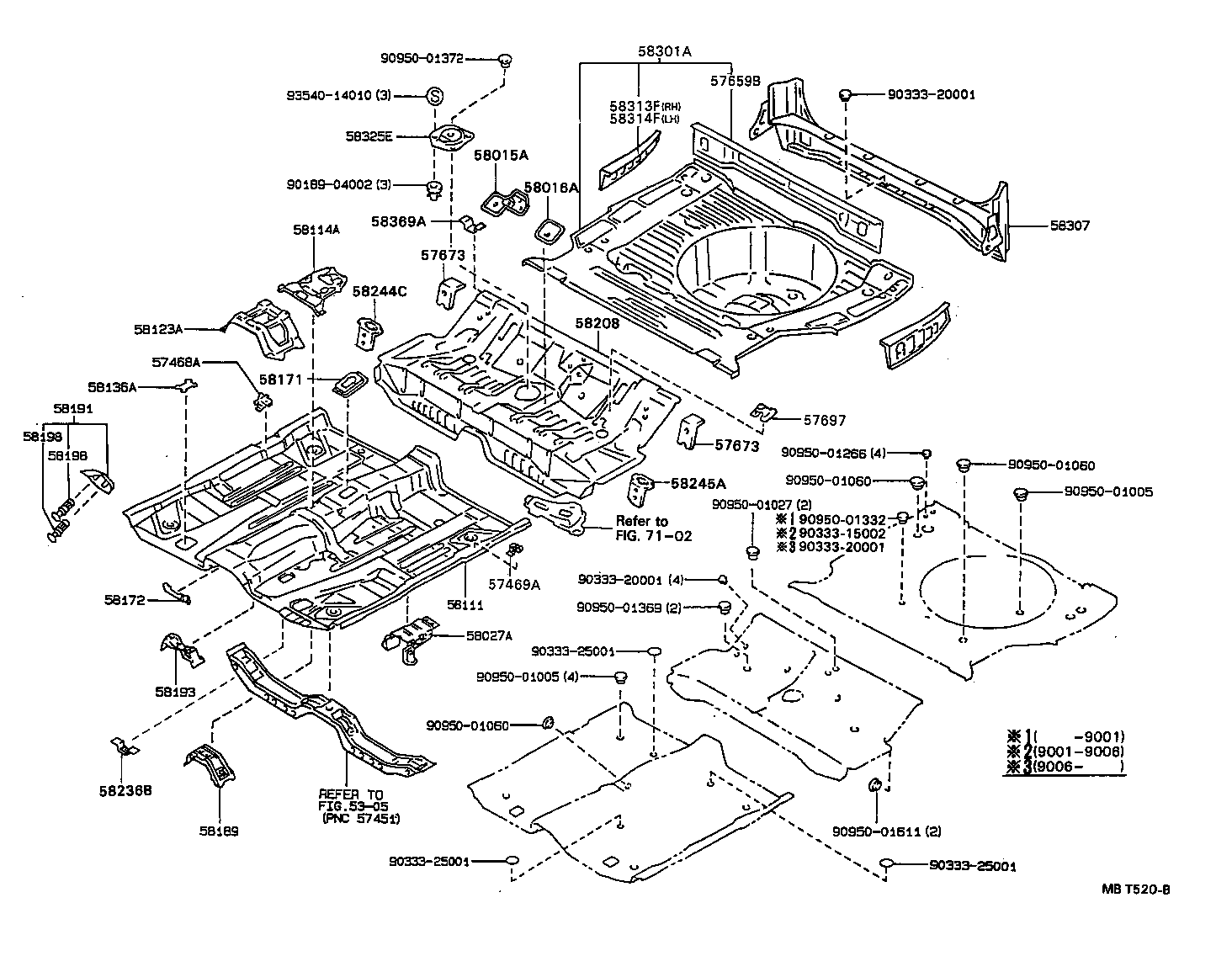

FLOOR PAN LOWER BACK PANEL

(8712- )WG

 CARINA 2 |  FLOOR PAN LOWER BACK PANEL ** Refer Fig 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH 57659B - MEMBER, REAR FLOOR CROSS, REAR INNER 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING 57697 - RETAINER, REAR SEAT CUSHION 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR 58111 - PAN, FRONT FLOOR 58114A - REINFORCEMENT, FRONT FLOOR PANEL 58123A - SUPPORT, SHIFT & SELECT LEVER 58136A - COVER, FRONT FLOOR SERVICE HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58172 - BRACKET, COMPUTER MOUNTING, NO.3 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET 58191 - FOOTREST, FRONT FLOOR 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING 58198 - CLIP, FOOTREST 58198 - CLIP, FOOTREST 58208 - PAN, CENTER FLOOR 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR 58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH 58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1 58301A - PANEL SUB-ASSY, REAR FLOOR 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58369A - BRACKET, FUEL TUBE, NO.3 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
