TOYOTA CARINA 2 ST171R-AEMNKW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

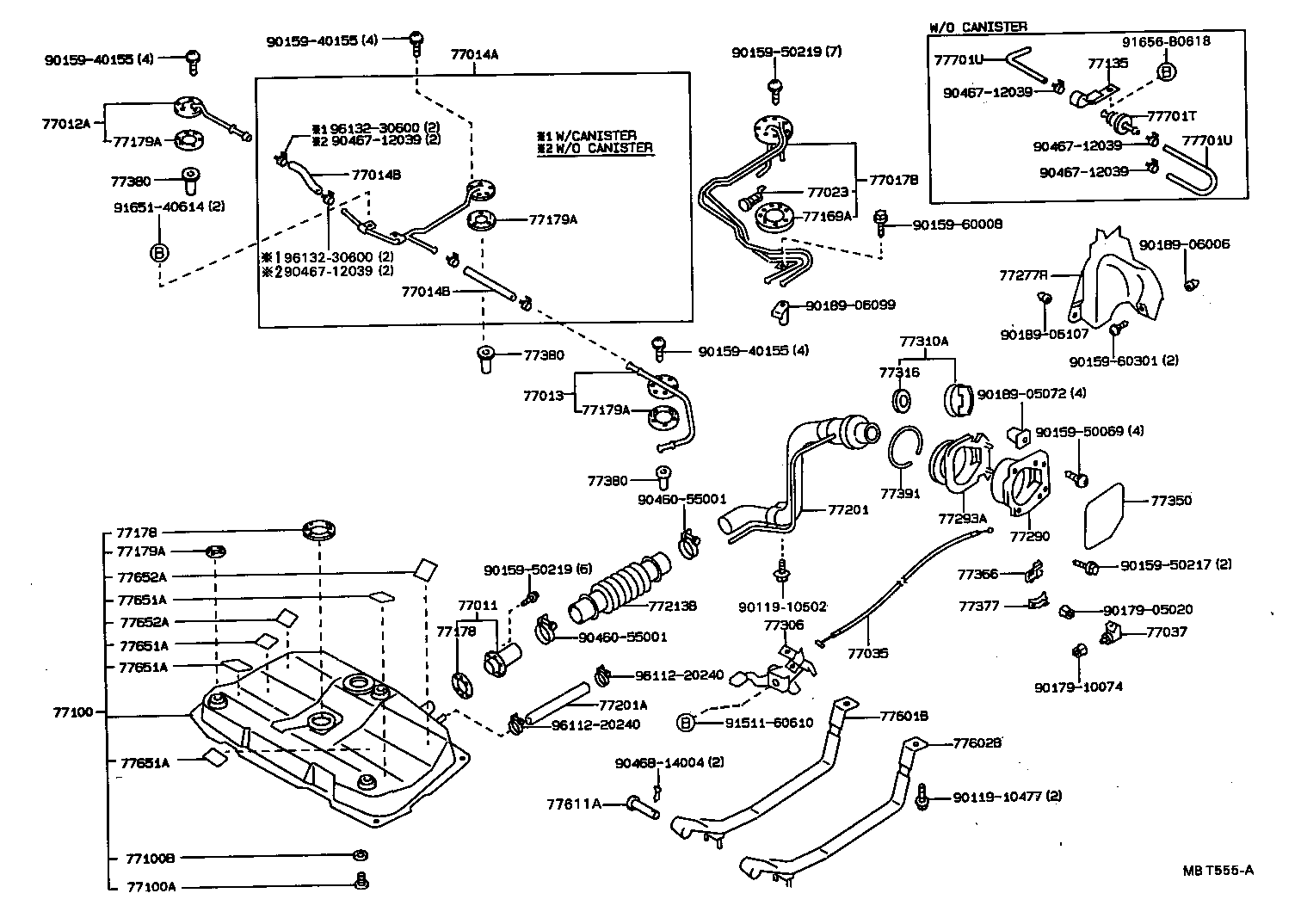

ILLUST NO. 1 OF 2(8712- )

 CARINA 2 |  FUEL TANK TUBE 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77135 - BRACKET, CHECK VALVE 77169A - GASKET, FUEL SUCTION TUBE SET 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77179A - GASKET, FUEL TANK BREATHER TUBE 77179A - GASKET, FUEL TANK BREATHER TUBE 77179A - GASKET, FUEL TANK BREATHER TUBE 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77213B - HOSE, FUEL TANK TO FILLER PIPE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77380 - VALVE ASSY, FUEL CUT OFF 77380 - VALVE ASSY, FUEL CUT OFF 77391 - RING, FUEL INLET BOX 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77611A - PIN (FOR FUEL TANK BAND) 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77701U - HOSE, FUEL (FOR CHECK VALVE) 77701U - HOSE, FUEL (FOR CHECK VALVE)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
