TOYOTA CARINA 2 ST171R-AEMNKW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

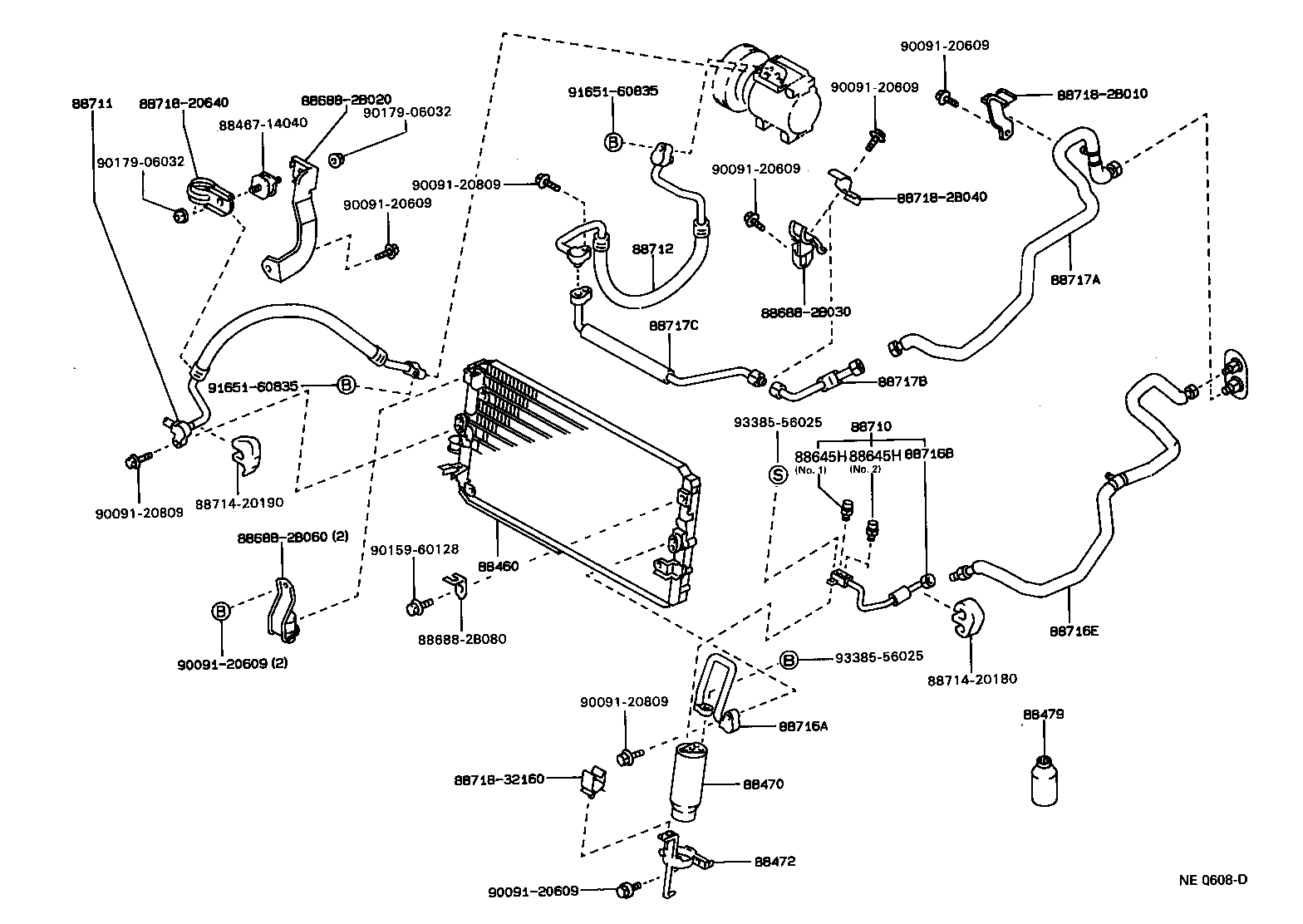

ILLUST NO. 1 OF 2(8712- )CT170,ST171..RHD

 CARINA 2 |  HEATING AIR CONDITIONING COOLER PIPING 88460 - CONDENSER ASSY, COOLER  ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER 88472 - BRACKET, RECEIVER TANK, NO.1 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) 88645H - SWITCH, PRESSURE NO.1 88645H - SWITCH, PRESSURE NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88710 - TUBE ASSY, AIRCONDITIONER 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1  ** Std Part  ** Std Part 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B 88717C - PIPE, COOLER REFRIGERANT SUCTION, C  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
