TOYOTA CARINA 2 ST171R-AEMNKW / TOOL-ENGINE-FUEL / WATER PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WATER PUMP

(8712- )3SFE

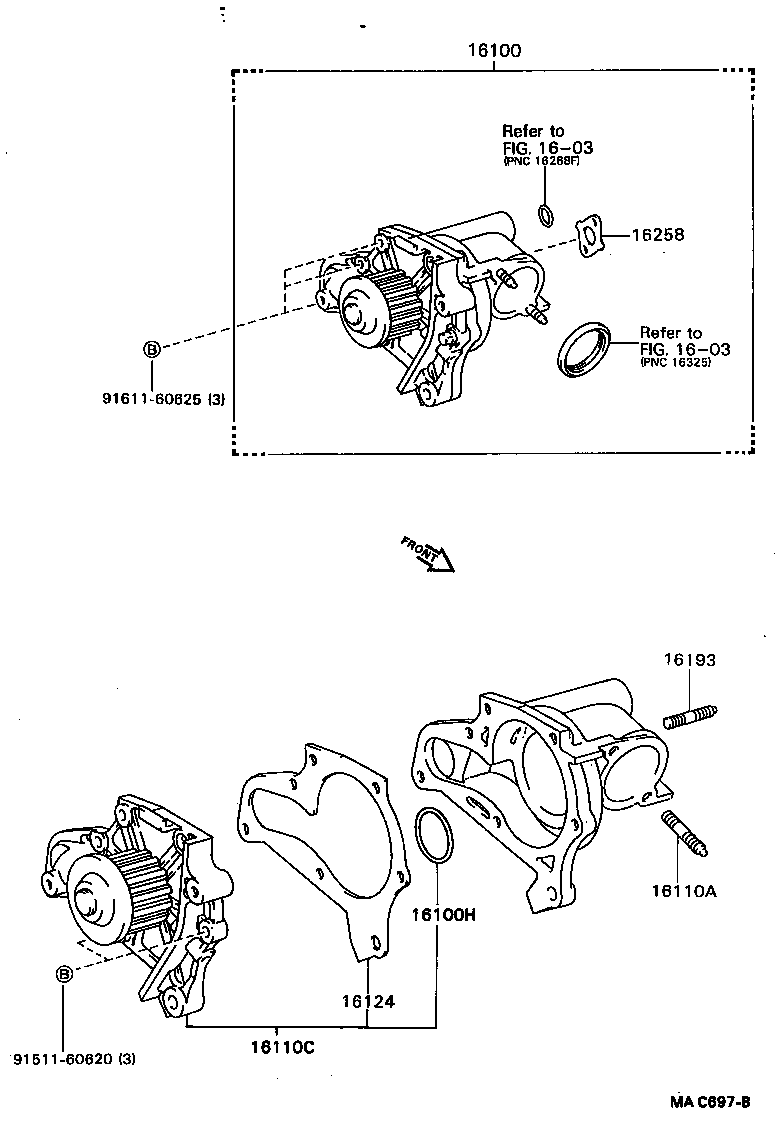

 CARINA 2 |  WATER PUMP ** Refer Fig ** Refer Fig 16100 - PUMP ASSY, ENGINE WATER 16100H - RING, O(FOR WATER PUMP) 16110A - BOLT, STUD(FOR WATER OUTLET SETTING) 16110C - PUMP ASSY, WATER, W/O COVER 16124 - GASKET, WATER PUMP COVER 16193 - BOLT, STUD(FOR WATER PUMP COVER) 16258 - GASKET(FOR HEATER RETURN)  ** Std Part  ** Std Part
