TOYOTA CELICA ST182R-BLPVFW / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

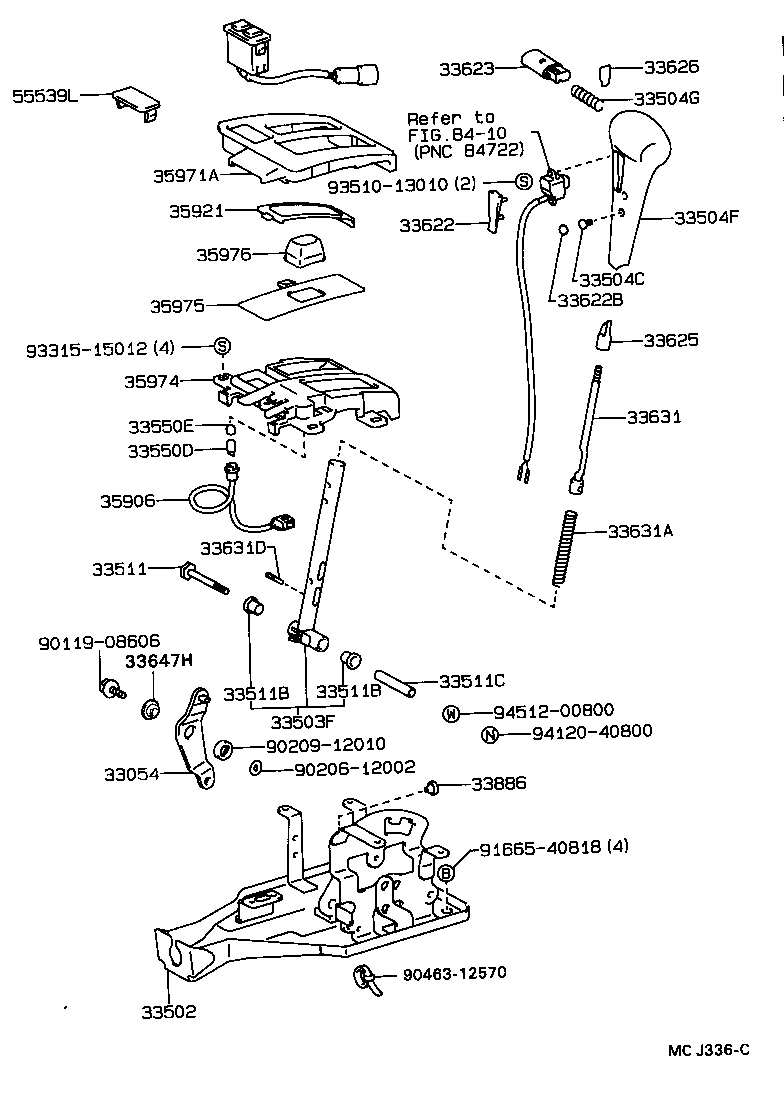

SHIFT LEVER RETAINER

A241E (8910- )ATM

 CELICA |  SHIFT LEVER RETAINER 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) 33502 - PLATE SUB-ASSY, SHIFT LEVER 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33504G - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB) 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33511B - BUSH (FOR CONTROL SHAFT) 33511B - BUSH (FOR CONTROL SHAFT) 33511C - COLLAR (FOR CONTROL SHAFT) 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33622 - COVER, SHIFT LEVER KNOB, NO.1 33622B - PLUG, SHIFT LEVER KNOB 33623 - BUTTON, SHIFT LEVER KNOB 33625 - SLEEVE, SHIFT LEVER KNOB 33626 - STOPPER, SHIFT LEVER BUTTON 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33647H - BUSH (FOR CONTROL LINK SHAFT) 33886 - STOPPER, SHIFT LEVER 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35971A - HOUSING, POSITION INDICATOR, UPPER 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) 55539L - COVER, SPARE SWITCH HOLE ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
