TOYOTA MR2 SW20R-ACMZFG / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

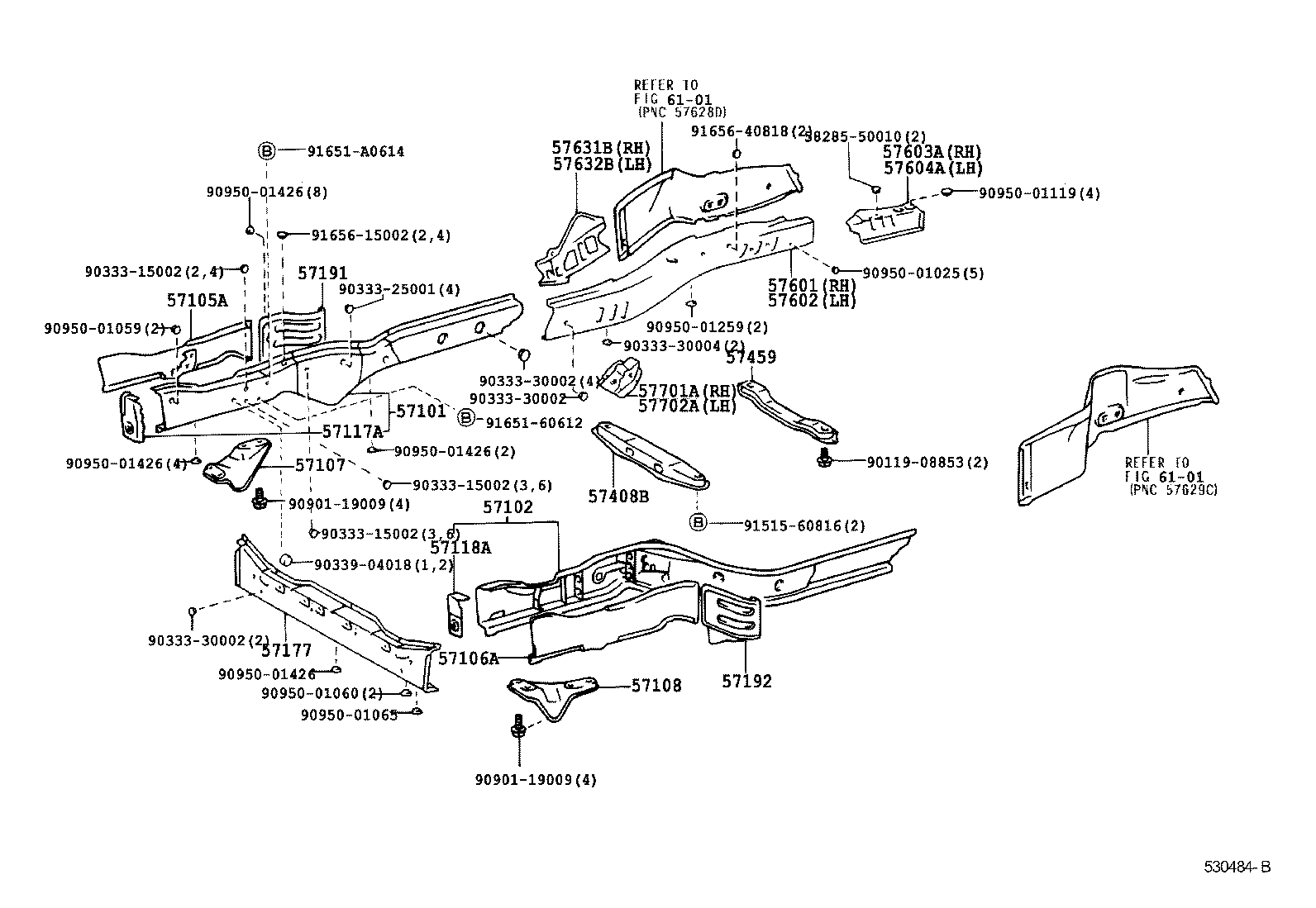

FLOOR SIDE MEMBER

(8912- )

 MR2 |  FLOOR SIDE MEMBER 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57105A - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH 57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH 57107 - BRACKET SUB-ASSY, STRUT BAR, RH 57108 - BRACKET SUB-ASSY, STRUT BAR, LH 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL 57191 - PLATE, FRONT SIDE MEMBER, OUTER REAR RH 57192 - PLATE, FRONT SIDE MEMBER, OUTER REAR LH 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH 57631B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH 57632B - REINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH 57701A - BRACKET SUB-ASSY, REAR STRUT BAR, RH 57702A - BRACKET SUB-ASSY, REAR STRUT BAR, LH  ** Std Part ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
