TOYOTA PICNIC SXM10L-APSDKW / POWERTRAIN-CHASSIS / CONTROL SHAFT CROSSSHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

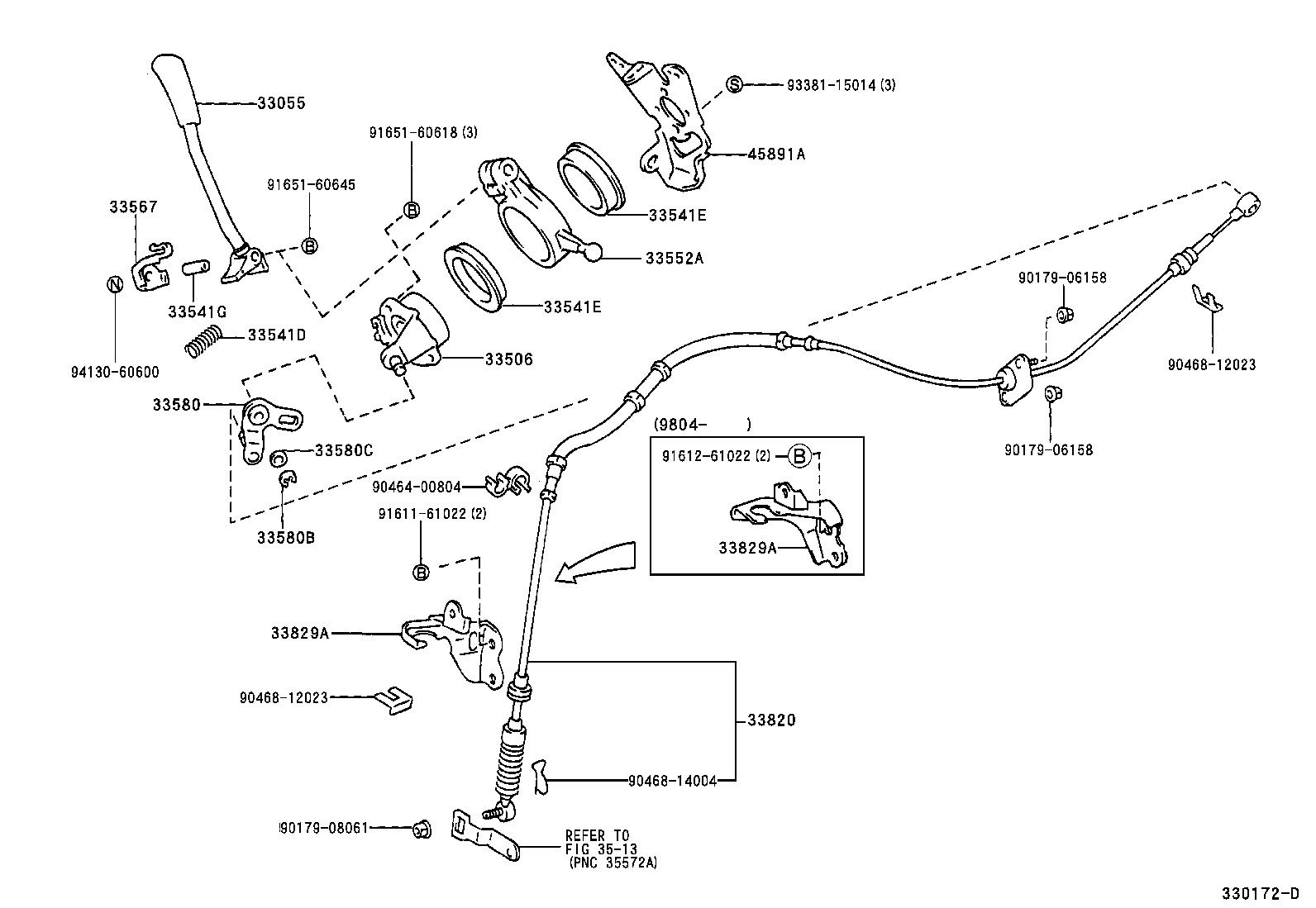

CONTROL SHAFT CROSSSHAFT

(9609- )LHD..ATM

 PICNIC |  CONTROL SHAFT CROSSSHAFT 33055 - LEVER SUB-ASSY, COLUMN SHIFT 33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT) 33541D - COLLAR (FOR COLUMN SHIFT LEVER) 33541E - BUSH (FOR COLUMN SHIFT LEVER) 33541E - BUSH (FOR COLUMN SHIFT LEVER) 33541G - SPRING, COMPRESSION (FOR COLUMN SHIFT LEVER) 33552A - ARM, SHIFT LEVER 33567 - CLAMP, CONTROL SHAFT TUBE 33580 - BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT) 33580B - RING, SHAFT SNAP (FOR SHIFTING BELLCRANK) 33580C - WASHER, PLATE (FOR SHIFTING BELL CRANK) 33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT) 33829A - SUPPORT, TRANSMISSION CONTROL CABLE 33829A - SUPPORT, TRANSMISSION CONTROL CABLE ** Refer Fig 45891A - BRACKET, TURN SIGNAL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
