FUEL INJECTION SYSTEM

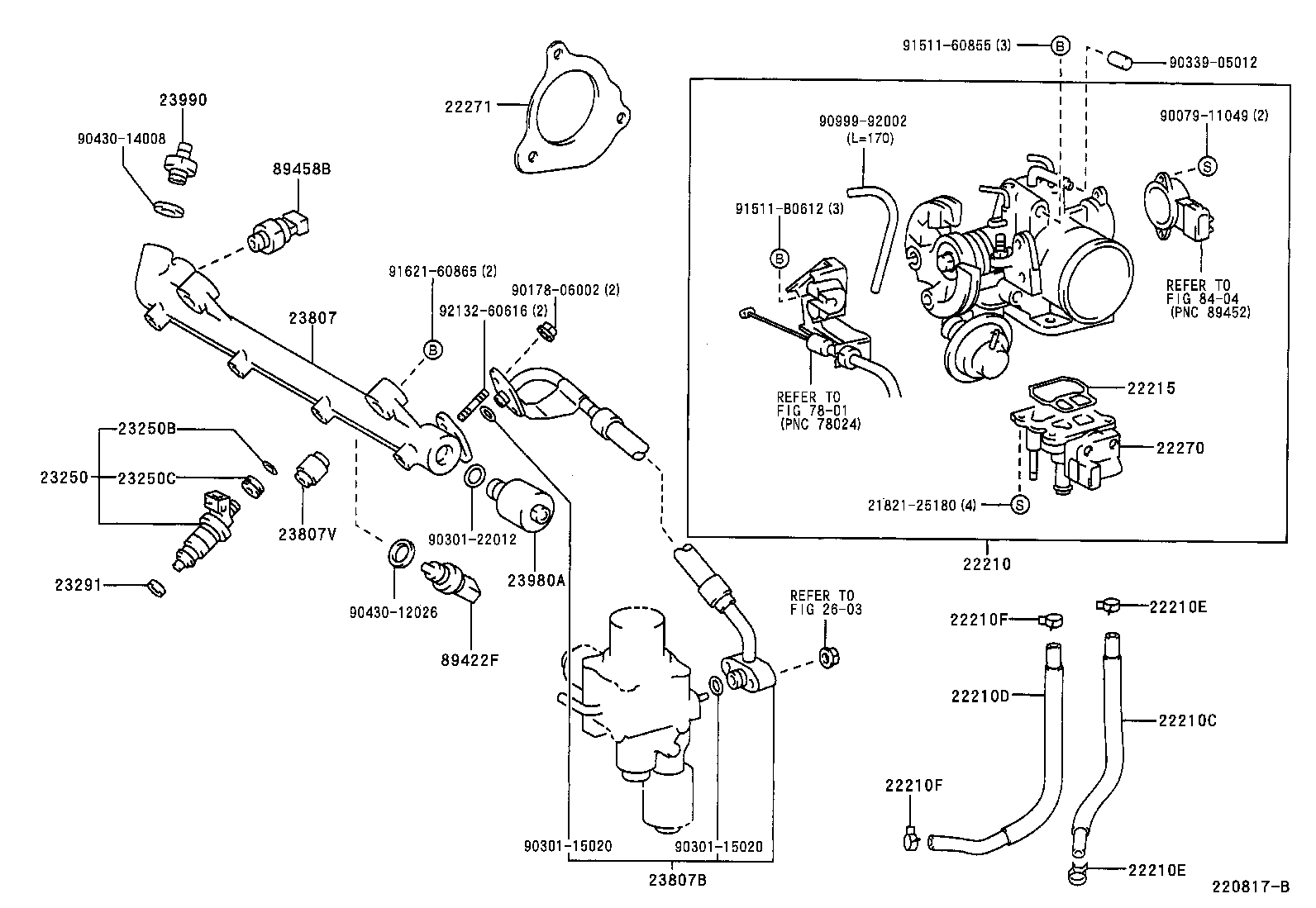

ILLUST NO. 1 OF 2(9908- )5SFNE..JPP

CAMRY JPP | FUEL INJECTION SYSTEM ** Std Part 22210 - BODY ASSY, THROTTLE 22210C - HOSE, WATER BY-PASS, NO.1 22210D - HOSE, WATER BY-PASS, NO.2 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22215 - GASKET, THROTTLE BODY COVER 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23291 - INSULATOR, INJECTOR VIBRATION 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807B - HOSE, FUEL DELIVERY PIPE 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23980A - VALVE ASSY, SOLENOID CNG 23990 - VALVE ASSY, PRESSURE DISCHARGE ** Refer Fig ** Refer Fig ** Refer Fig 89422F - SENSOR, FUEL TEMPERATURE 89458B - SENSOR, FUEL PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
