TOYOTA HILUX LN145R-TRMDSW / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

(9708- )LN145..RHD

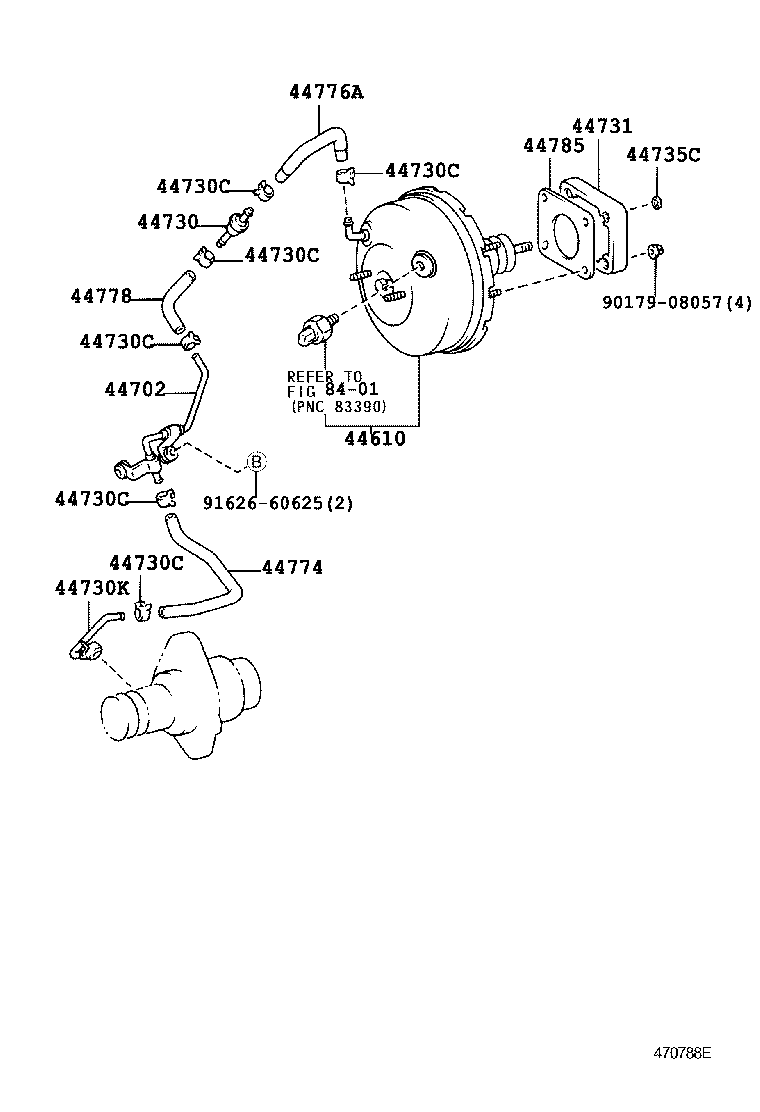

 HILUX |  BRAKE BOOSTER VACUUM TUBE 44610 - BOOSTER ASSY, BRAKE 44702 - TUBE SUB-ASSY, AIR, NO.1 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) 44731 - BRACKET, BRAKE BOOSTER, FRONT 44735C - RING, BOOSTER BRACKET STOPPER 44774 - HOSE, UNION TO CONNECTOR TUBE 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE 44785 - GASKET, BRAKE BOOSTER ** Refer Fig  ** Std Part  ** Std Part
