TOYOTA AVENSIS AZT220L-AEMEHW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

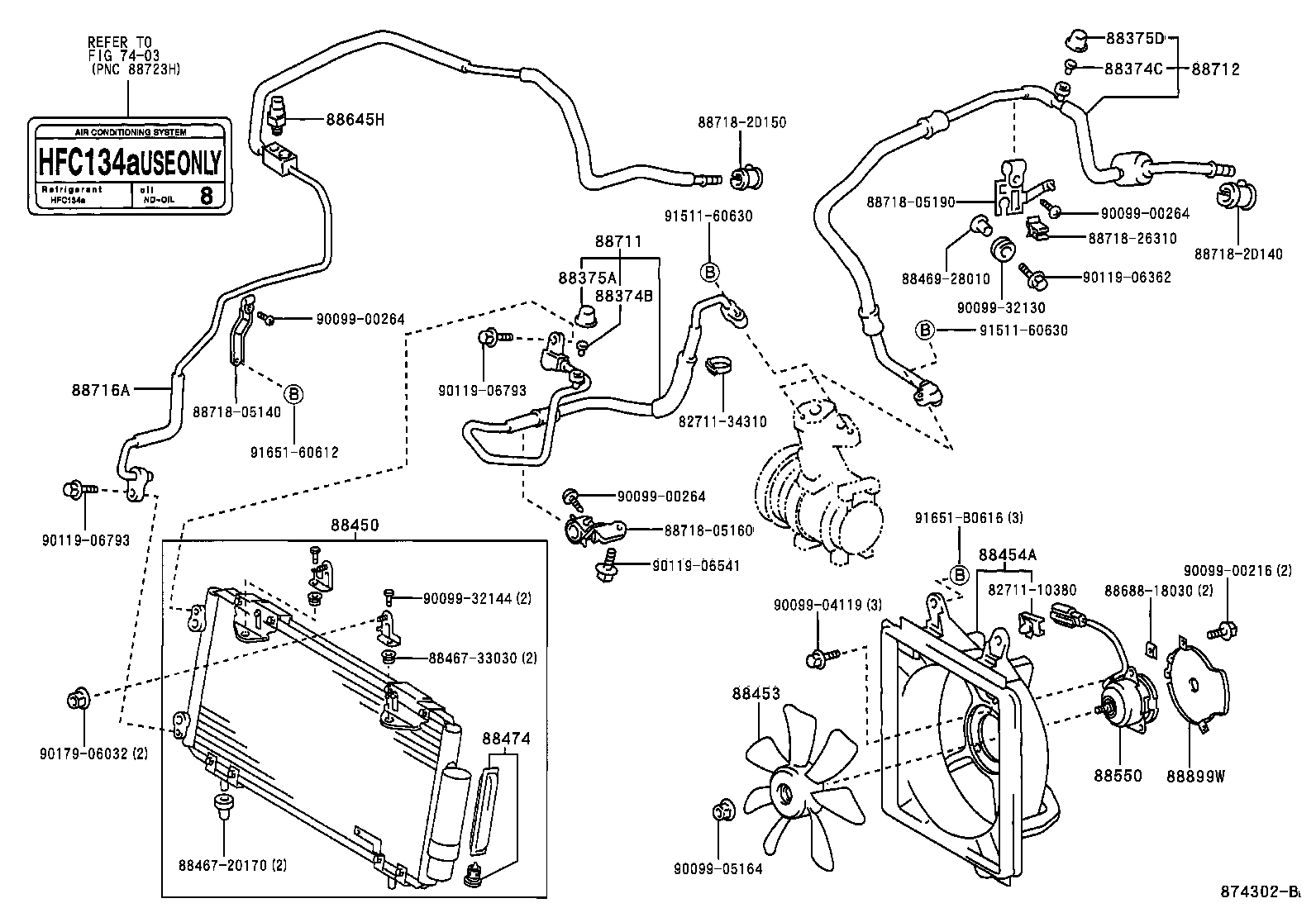

HEATING AIR CONDITIONING COOLER PIPING

MAKER OPTION ILLUST NO. 1 OF 2(0007- )AZT220..LHD

 AVENSIS |  HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig  ** Std Part  ** Std Part 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88375D - CAP, SERVICE VALVE, NO.2 88450 - CONDENSER ASSY, W/RECEIVER 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN  ** Std Part  ** Std Part  ** Std Part 88474 - DRYER, COOLER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88645H - SWITCH, PRESSURE NO.1  ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88899W - SUPPORT SUB-ASSY, B  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
