TOYOTA PREVIA TARAGO ACR30L-MFSDKW / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

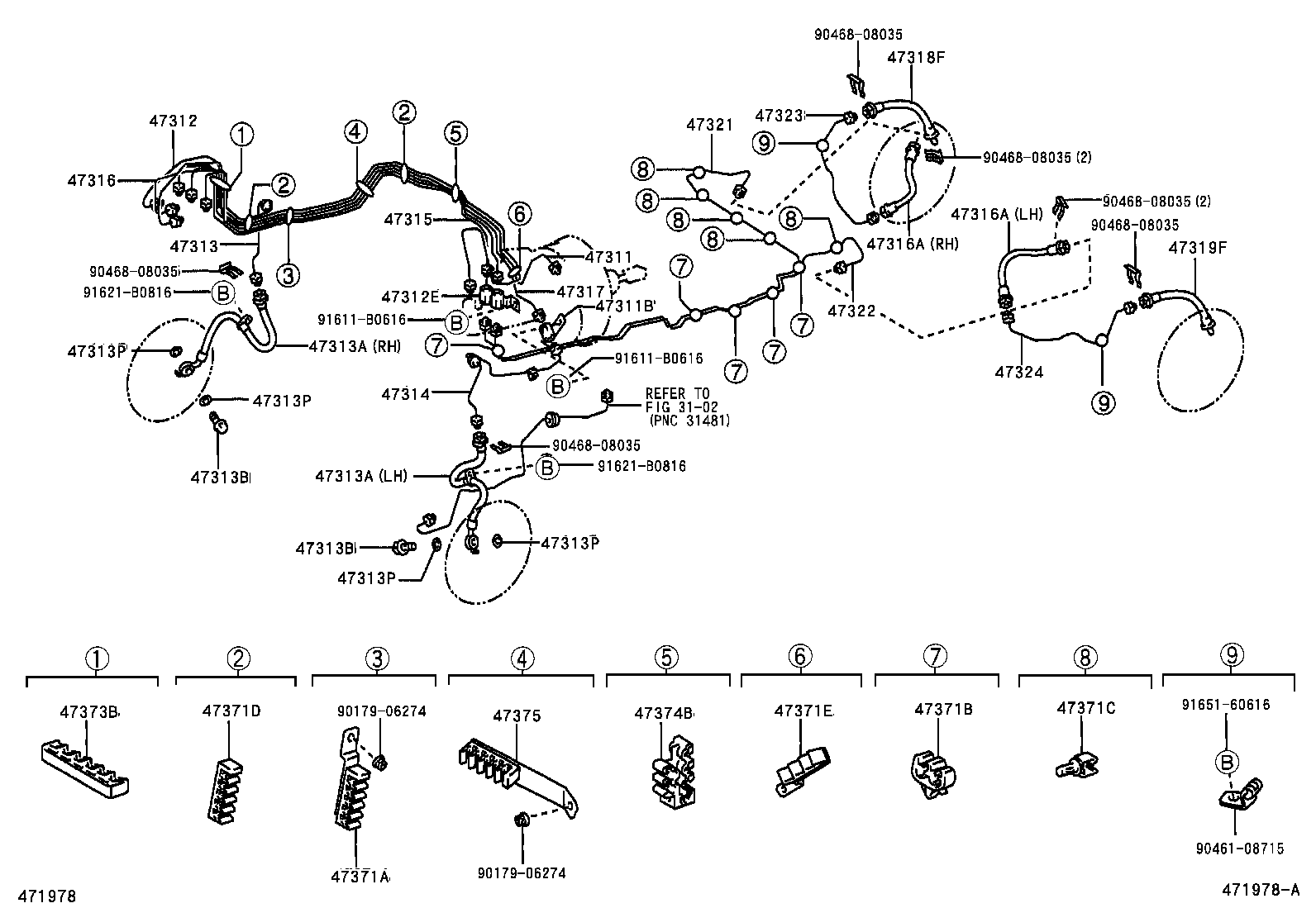

W(ABS) ILLUST NO. 1 OF 2(0002-0007)LHD

 PREVIA TARAGO |  BRAKE TUBE CLAMP ** Refer Fig 47311 - TUBE, FRONT BRAKE, NO.1 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47315 - TUBE, FRONT BRAKE, NO.5 47316 - TUBE, FRONT BRAKE, NO.6 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47317 - TUBE, FRONT BRAKE, NO.7 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47322 - TUBE, REAR BRAKE, NO.2 47323 - TUBE, REAR BRAKE, NO.3 47324 - TUBE, REAR BRAKE, NO.4 47371A - CLAMP, BRAKE TUBE, NO.1 47371B - CLAMP, BRAKE TUBE, NO.6 47371C - CLAMP, BRAKE TUBE, NO.7 47371D - CLAMP, BRAKE TUBE, NO.8 47371E - CLAMP, BRAKE TUBE, NO.9 47373B - CLAMP, BRAKE TUBE, NO.3 47374B - CLAMP, BRAKE TUBE, NO.4 47375 - CLAMP, BRAKE TUBE, NO.5  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
