TOYOTA CELICA ZZT230L-BLMSHA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

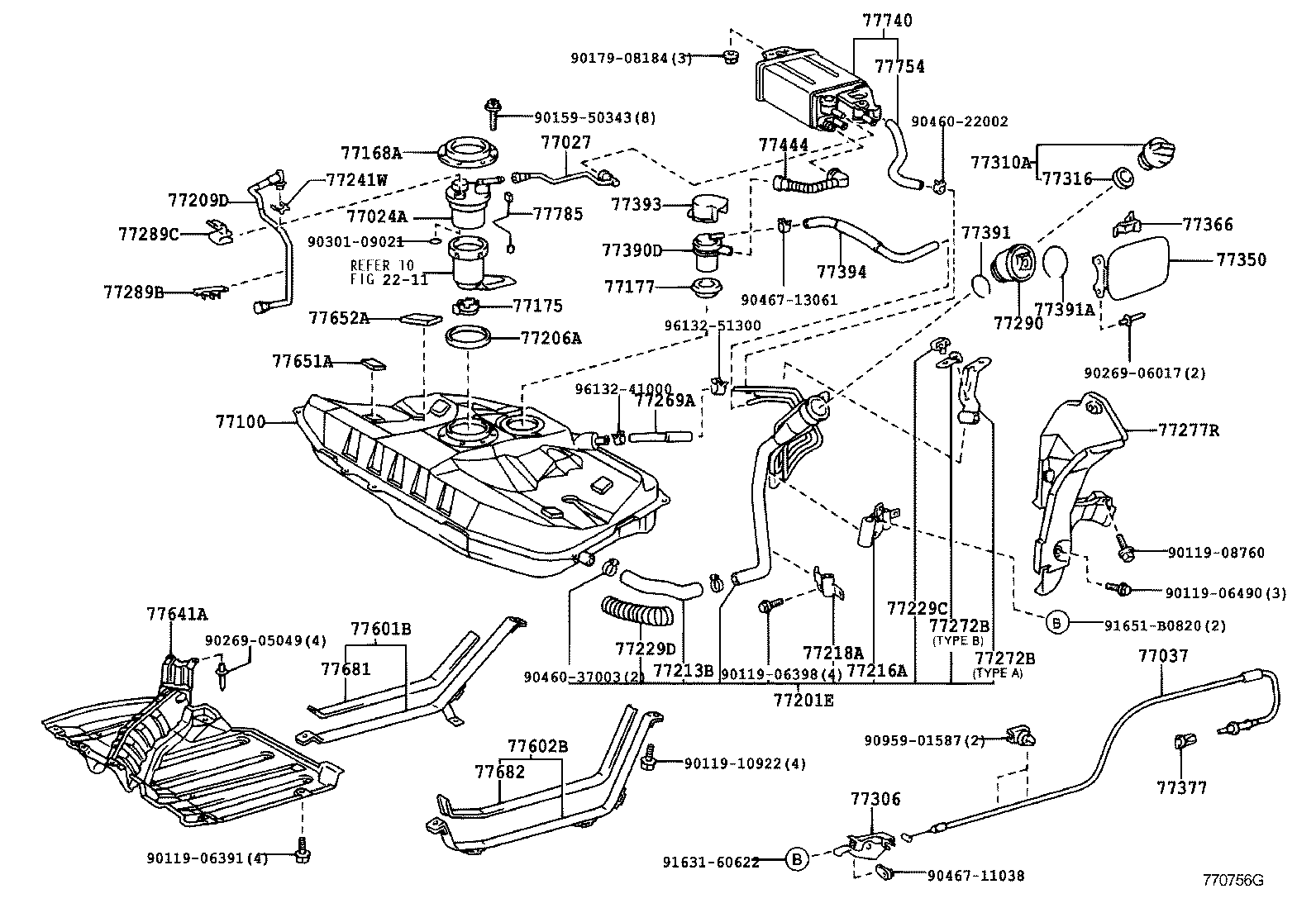

FUEL TANK ILLUST NO. 1 OF 2(9908-0507)

 CELICA |  FUEL TANK TUBE ** Refer Fig 77024A - PLATE SUB-ASSY, FUEL SUCTION 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77168A - PLATE, FUEL TANK VENT TUBE SET 77175 - SUPPORT, FUEL SUCTION, NO.2 77177 - GASKET, CHECK VALVE 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 77229C - CLAMP, BREATHER TUBE 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 77241W - CLIP, TUBE JOINT 77269A - HOSE, FUEL TANK BREATHER 77272B - SUPPORT, BREATHER TUBE, NO.1 77272B - SUPPORT, BREATHER TUBE, NO.1 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77289B - CLAMP, FUEL TUBE, NO.3 77289C - CLAMP, FUEL TUBE, NO.4 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77390D - VALVE ASSY, FUEL TANK OVER FILL CHECK 77391 - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77393 - PROTECTOR, CHECK VALVE 77394 - HOSE, VALVE TO FUEL FILLER PIPE 77444 - HOSE, FUEL TANK VENT 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH 77740 - CANISTER ASSY, CHARCOAL 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77785 - HARNESS, FUEL PUMP  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
