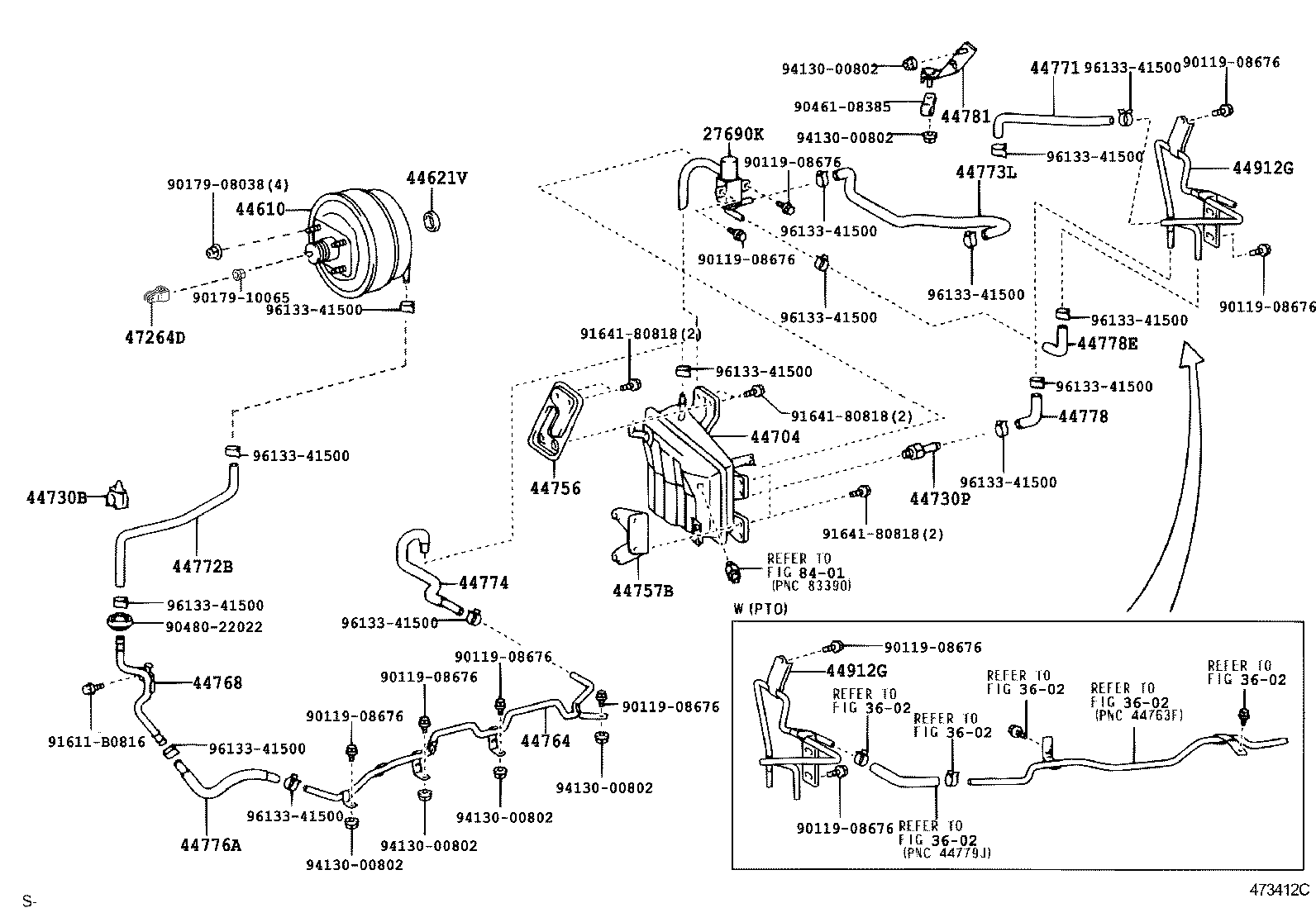

TOYOTA DYNA WU410R-TKMRS3 / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

W/O(ABS & CLUTCH BOOSTER) (0212-0610)WU410..RHD..GEN

 DYNA |  BRAKE BOOSTER VACUUM TUBE 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 44610 - BOOSTER ASSY, BRAKE 44621V - SEAL, BOOSTER BODY 44704 - RESERVOIR SUB-ASSY, VACUUM 44730B - CLAMP, VACUUM HOSE 44730P - VALVE ASSY, VACUUM CHECK, NO.1 44756 - BRACKET, VACUUM RESERVOIR 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 44764 - TUBE, BOOSTER VACUUM 44768 - TUBE, BOOSTER VACUUM 44771 - HOSE, VACUUM TUBE CONNECTOR 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER 44773L - HOSE, SOLENOID TO EXHAUST RETARDER 44774 - HOSE, UNION TO CONNECTOR TUBE 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44778 - HOSE, CONNECTOR TO CHECK VALVE 44778E - HOSE, CONNECTOR TUBE TO SOLENOID 44781 - BRACKET, HOSE 44912G - TUBE, 3 WAY TO MAGNETIC VALVE 44912G - TUBE, 3 WAY TO MAGNETIC VALVE 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
