TOYOTA AVENSIS CDT220R-AWMNYW / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

BRAKE BOOSTER VACUUM TUBE

(9908- )CDT220..RHD

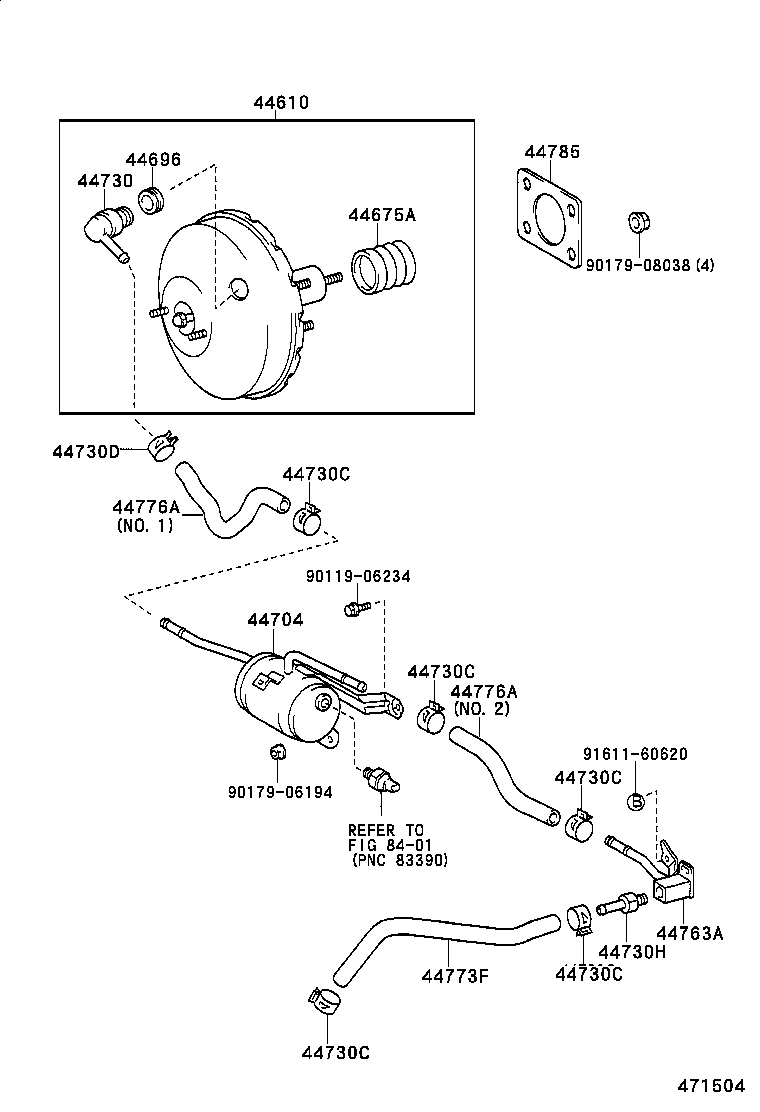

AVENSIS | BRAKE BOOSTER VACUUM TUBE 44610 - BOOSTER ASSY, BRAKE 44675A - BOOT, BRAKE BOOSTER 44696 - GROMMET, CHECK VALVE 44704 - RESERVOIR SUB-ASSY, VACUUM 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730C - CLIP(FOR VACUUM HOSE) 44730D - CLIP(FOR VACUUM HOSE, NO.1) 44730H - VALVE ASSY, VACUUM CHECK(FOR VACUUM RESERVOIR) 44763A - TUBE, HOSE TO HOSE, NO.1 44773F - HOSE, UNION TO CHECK VALVE 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 44785 - GASKET, BRAKE BOOSTER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
