HEATING AIR CONDITIONING COOLER UNIT

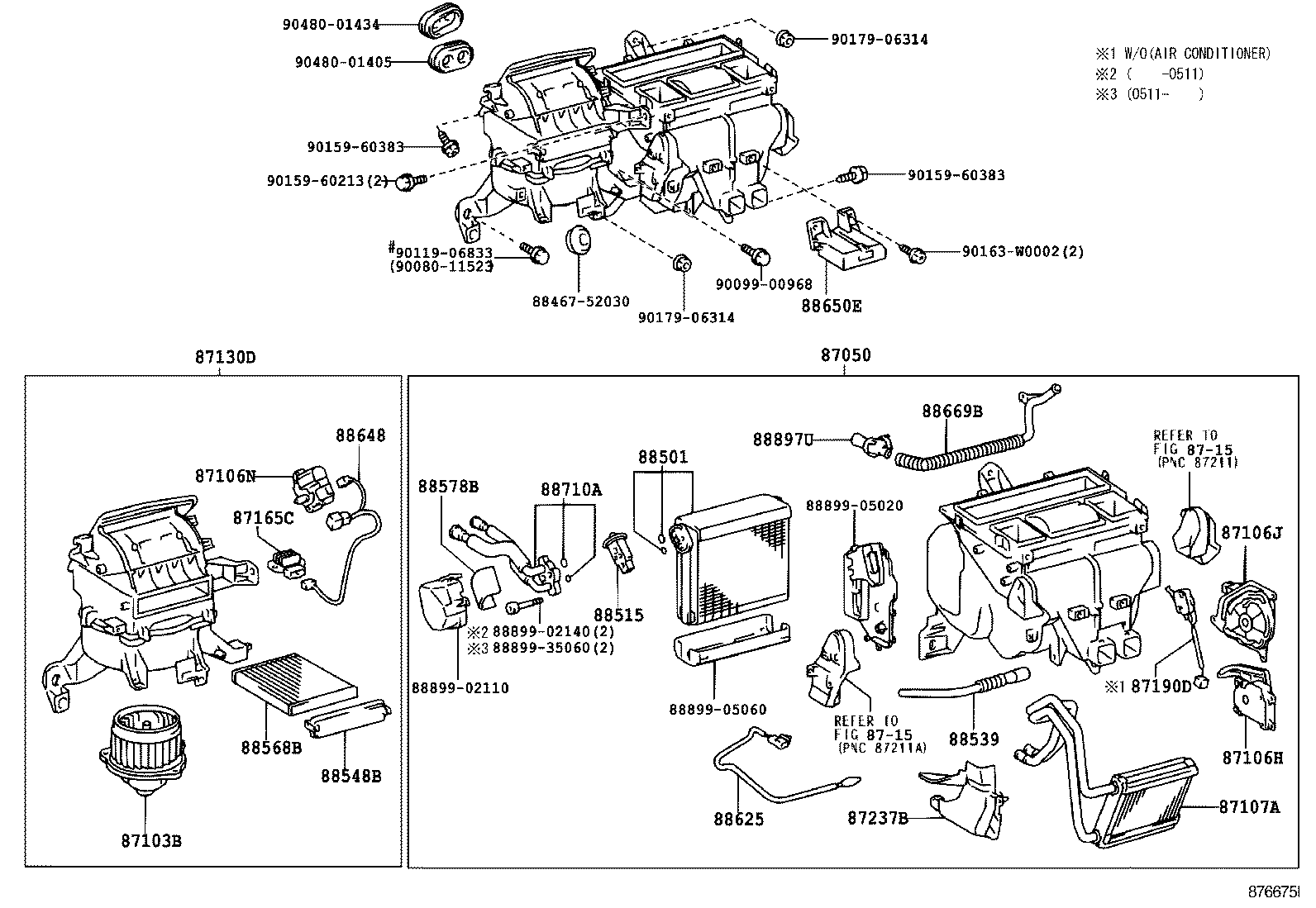

AUTO AIR CONDITIONER ILLUST NO. 1 OF 2(0402-0705)RHD..SOL

COROLLA VERSO | HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY ** Refer Fig ** Refer Fig 87165C - CONTROL, BLOWER MOTOR 87190D - SWITCH ASSY, TEMPERATURE CONTROL 87237B - COVER, HEATER PIPING ** Std Part 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88548B - CASE, AIR FILTER 88568B - FILTER, AIR 88578B - PACKING, COOLING UNIT, NO.1 88625 - THERMISTOR, COOLER, NO.1 88648 - WIRING, COOLER, NO.1 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 88669B - HOSE, COOLER AIR 88710A - TUBE ASSY, AIRCONDITIONER 88897U - PIPE, ASPIRATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
