TOYOTA RAV4 CLA21R-AWMNYW / BODY / HOOD FRONT FENDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

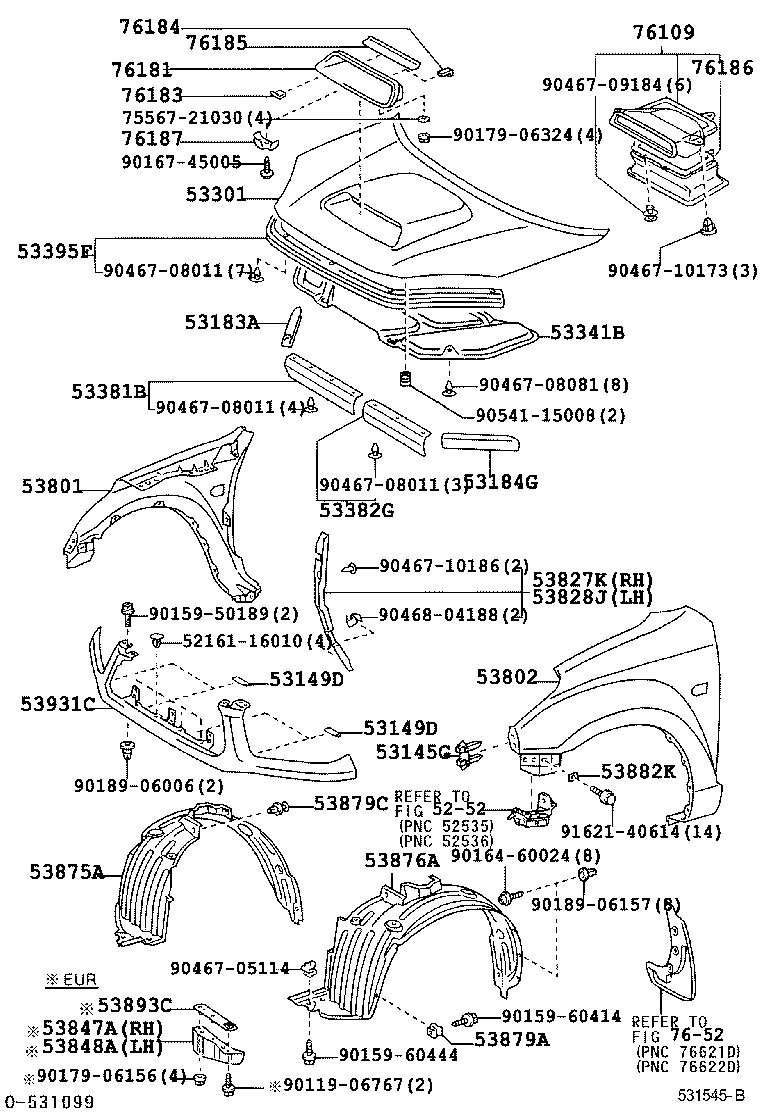

HOOD FRONT FENDER

(0307- )CLA2#

 RAV4 |  HOOD FRONT FENDER  ** Std Part ** Refer Fig 53145G - CLIP, RADIATOR GRILLE 53149D - PROTECTOR, RADIATOR GRILLE, NO.2 53149D - PROTECTOR, RADIATOR GRILLE, NO.2 53183A - SEAL, HEADLAMP COVER, RH 53184G - SEAL, HEADLAMP COVER, LH 53301 - HOOD SUB-ASSY 53341B - INSULATOR, HOOD 53381B - SEAL, HOOD TO RADIATOR SUPPORT, RH 53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH 53395F - SEAL, HOOD TO RADIATOR GRILLE 53801 - FENDER SUB-ASSY, FRONT RH 53802 - FENDER SUB-ASSY, FRONT LH 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH 53847A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH 53848A - EXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH 53875A - LINER, FRONT FENDER, RH 53876A - LINER, FRONT FENDER, LH 53879A - RETAINER, FRONT FENDER LINER 53879C - RETAINER, FRONT FENDER LINER 53882K - SEAL, FRONT FENDER 53893C - RETAINER, FRONT FENDER SPLASH SHIELD, FRONT 53931C - PANEL, FRONT END  ** Std Part 76109 - GUIDE SUB-ASSY, HOOD AIR INTAKE 76181 - BULGE, HOOD 76183 - PROTECTOR, HOOD BULGE, NO.1 76184 - PROTECTOR, HOOD BULGE, NO.2 76185 - PROTECTOR, HOOD BULGE, NO.3 76186 - SEAL, HOOD AIR INTAKE 76187 - RETAINER, HOOD AIR INTAKE GUIDE, NO.1 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
