TOYOTA CELICA ZZT231L-BLPVFA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

ILLUST NO. 2 OF 2(0208-0508)

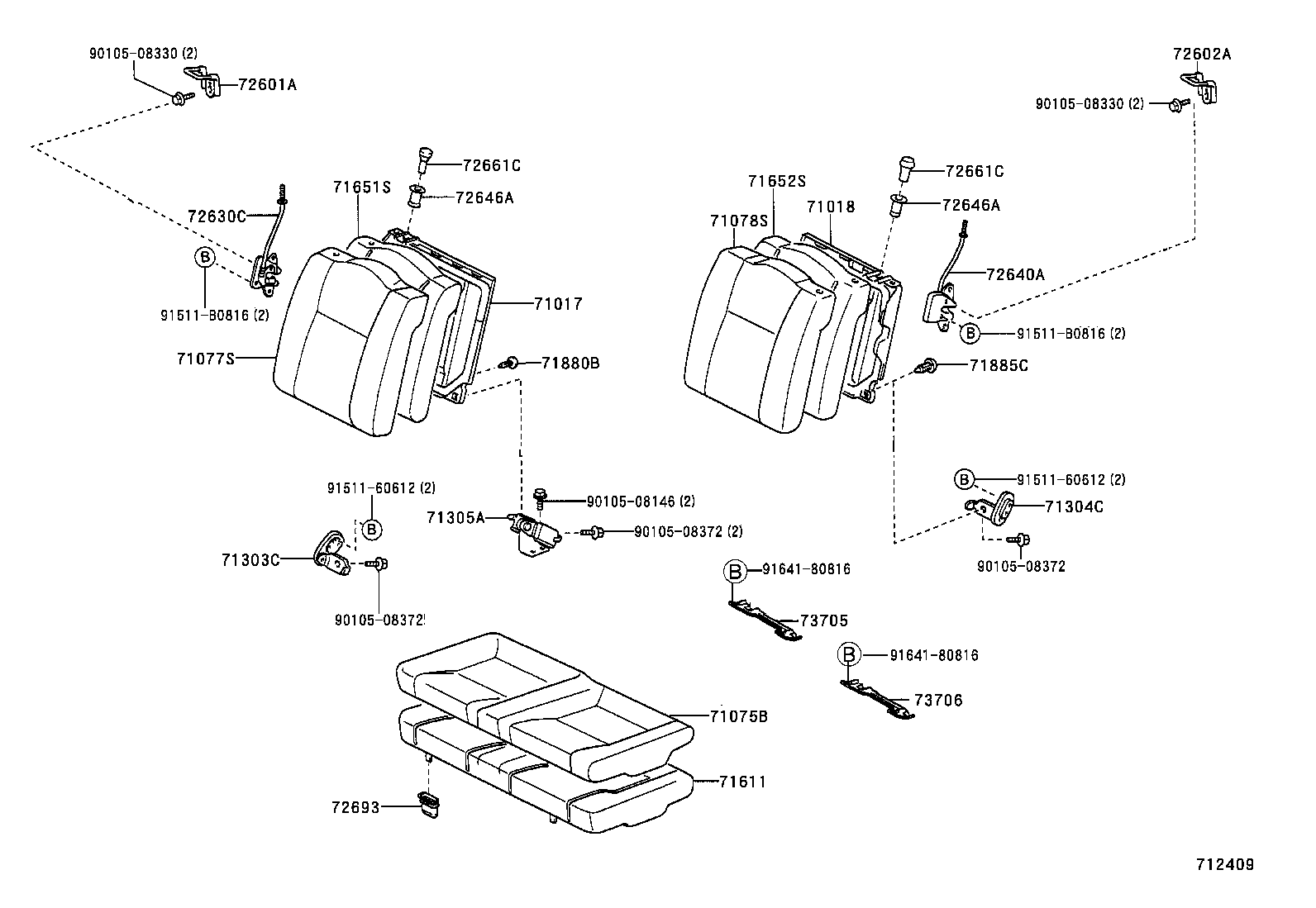

 CELICA |  REAR SEAT SEAT TRACK 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER 71611 - PAD, REAR SEAT CUSHION 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71880B - CLIP(FOR REAR SEAT BACK CARPET) 71885C - CLIP(FOR REAR SEAT BACK CARPET) 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH 72630C - LOCK ASSY, REAR SEAT BACK, RH 72640A - LOCK ASSY, REAR SEAT BACK, LH 72646A - GROMMET, REAR SEAT BACK STOP BUTTON 72646A - GROMMET, REAR SEAT BACK STOP BUTTON 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72693 - HOOK, REAR SEAT CUSHION LOCK 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
