TOYOTA COROLLA VERSO CUR10L-GRMEYW / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

REAR SEAT SEAT TRACK

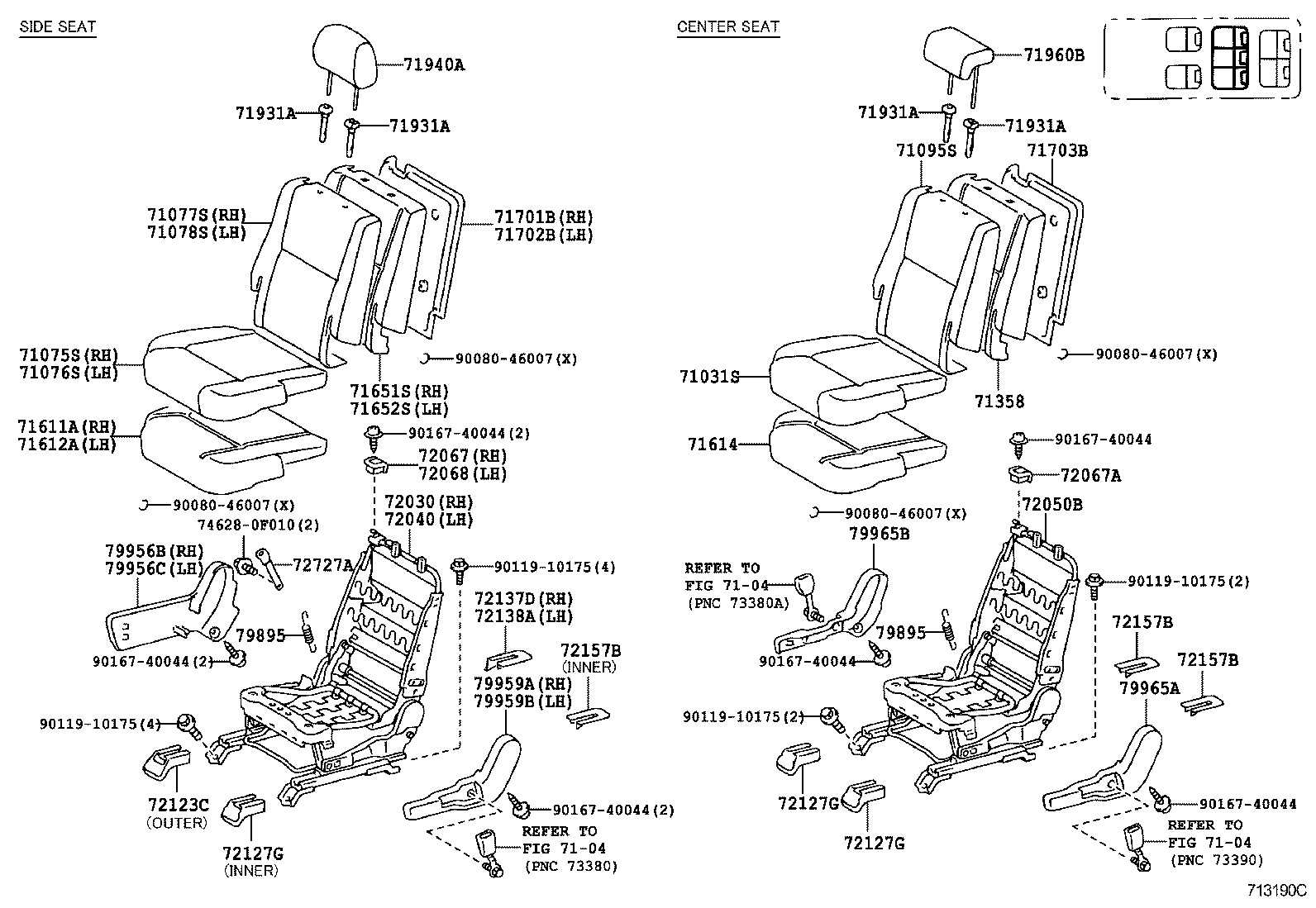

REAR NO.1 SEAT ILLUST NO. 1 OF 2(0402- )

COROLLA VERSO | REAR SEAT SEAT TRACK 71031S - COVER SUB-ASSY, CENTER SEAT CUSHION ** Refer Fig ** Refer Fig ** Refer Fig 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71095S - COVER SUB-ASSY, CENTER SEAT BACK 71358 - PAD, CENTER SEAT BACK 71611A - PAD, REAR SEAT CUSHION, RH 71612A - PAD, REAR SEAT CUSHION, LH 71614 - PAD, REAR SEAT CUSHION, CENTER 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH 71703B - BOARD, REAR SEAT BACK, CENTER 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72030 - ADJUSTER ASSY, REAR NO.1 SEAT 72040 - ADJUSTER ASSY, REAR NO.2 SEAT 72050B - ADJUSTER, REAR NO.1 SEAT, CENTER 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH 72067A - LEVER, REAR BACK LOCK CONTROL, CENTER 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72127G - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137D - COVER, REAR SEAT TRACK, RH 72138A - COVER, REAR SEAT TRACK, LH 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH 72727A - KNOB, REAR SEAT RECLINING CONTROL LEVER ** Std Part 79895 - SPRING, REAR NO.1 SEAT BACK 79895 - SPRING, REAR NO.1 SEAT BACK 79956B - COVER, REAR SEAT LEG SIDE, RH 79956C - COVER, REAR SEAT LEG SIDE, LH 79959A - COVER, REAR SEAT LEG, RH 79959B - COVER, REAR SEAT LEG, LH 79965A - COVER, REAR SEAT LEG SIDE, NO.2 79965B - COVER, REAR SEAT LEG SIDE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
