TOYOTA COROLLA VERSO CUR10L-GRMEYW / ELECTRICAL / HEADLAMP CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

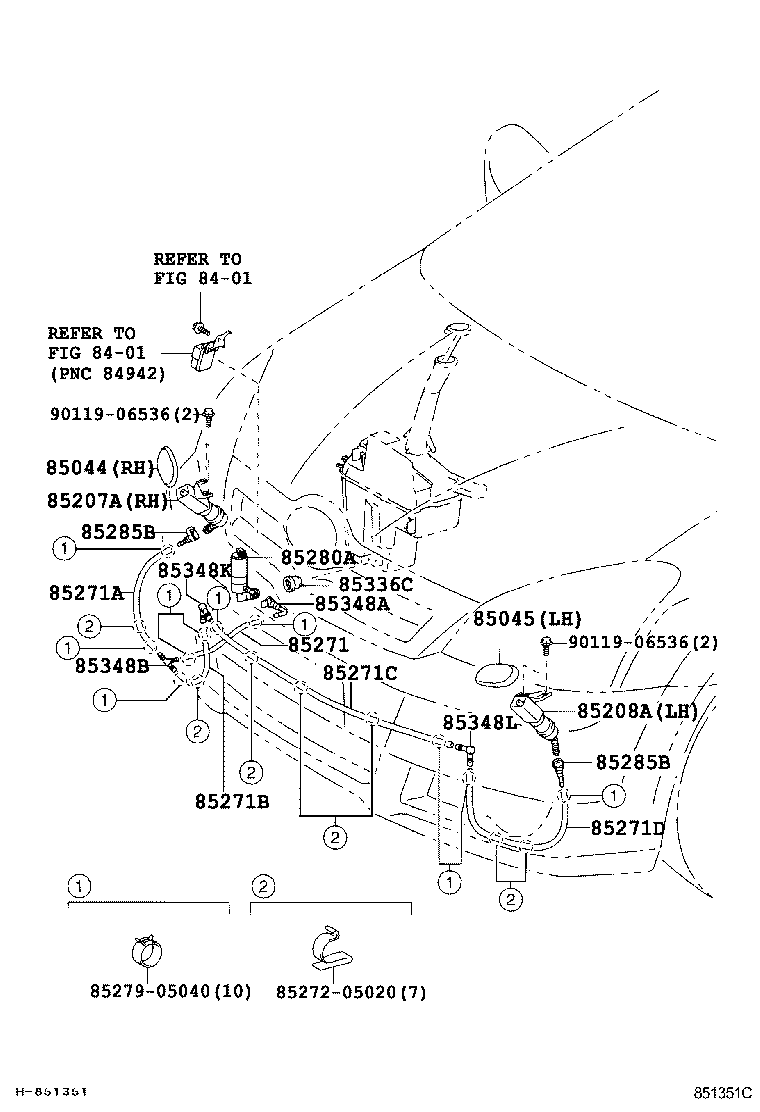

HEADLAMP CLEANER

(0402-0705)LHD

 COROLLA VERSO |  HEADLAMP CLEANER ** Refer Fig ** Refer Fig 85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH 85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH 85271 - HOSE, HEADLAMP CLEANER, NO.1 85271A - HOSE, HEADLAMP CLEANER, NO.2 85271B - HOSE, HEADLAMP CLEANER, NO.3 85271C - HOSE, HEADLAMP CLEANER, NO.4 85271D - HOSE, HEADLAMP CLEANER, NO.5  ** Std Part  ** Std Part 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER 85285B - JOINT, HEADLAMP CLEANER NOZZLE NO.1 85285B - JOINT, HEADLAMP CLEANER NOZZLE NO.1 85336C - PACKING, HEADLAMP CLEANER MOTOR 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2  ** Std Part  ** Std Part
