TOYOTA COROLLA VERSO CUR10L-GRMEYW / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

HEATING AIR CONDITIONING COOLER PIPING

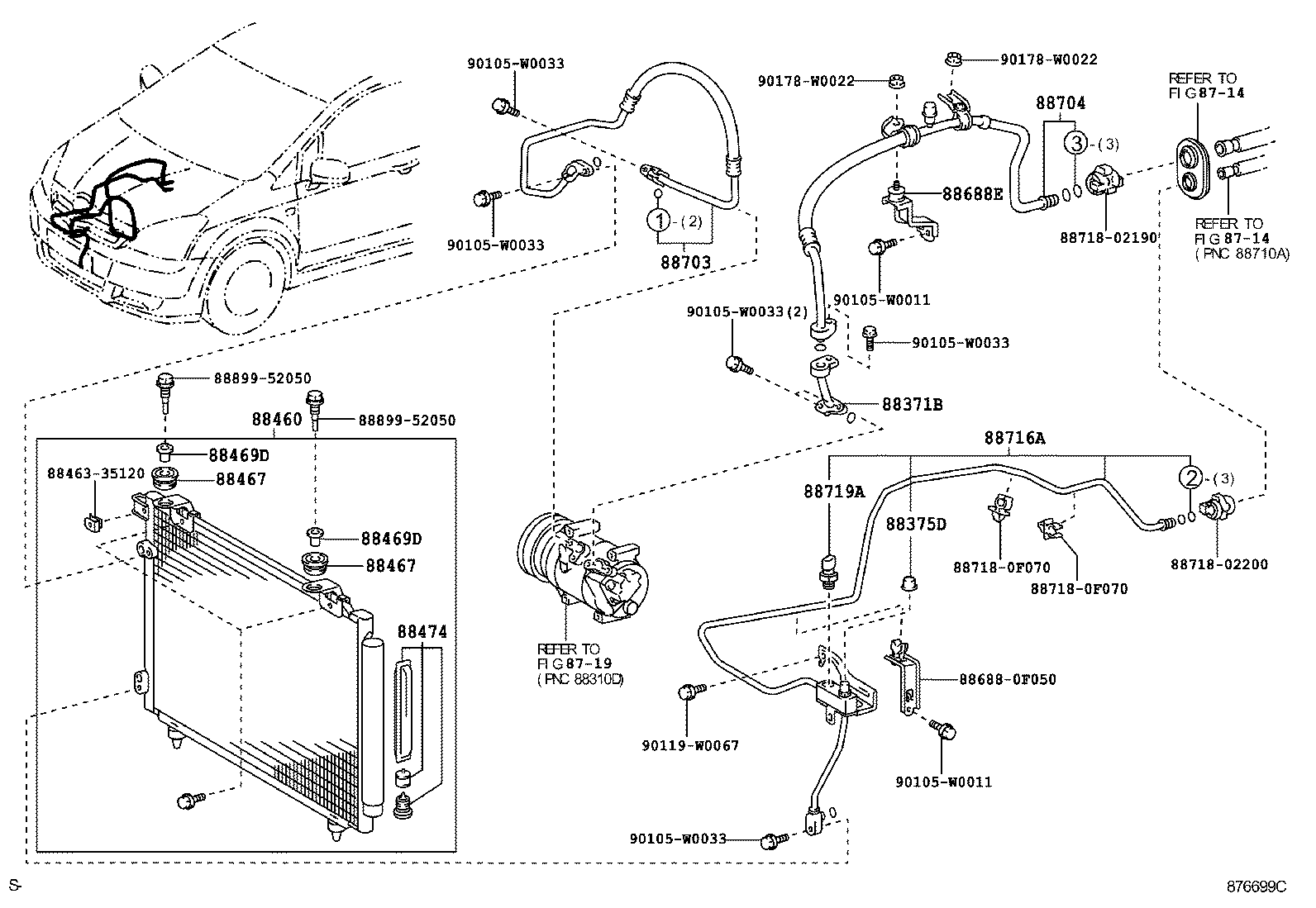

ILLUST NO. 1 OF 2(0402-0508)CUR10..LHD

COROLLA VERSO | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig 88371B - VALVE, SUCTION SERVICE 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER ** Std Part 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88469D - COLLAR, CONDENSER BRACKET, NO.1 88469D - COLLAR, CONDENSER BRACKET, NO.1 88474 - DRYER, COOLER ** Std Part 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 88703 - HOSE SUB-ASSY, DISCHARGE 88704 - HOSE SUB-ASSY, SUCTION 88716A - PIPE, COOLER REFRIGERANT LIQUID, A ** Std Part ** Std Part ** Std Part ** Std Part 88719A - SENSOR, AIRCONDITIONER PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
