TOYOTA COROLLA VERSO CUR10L-GRMEYW / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

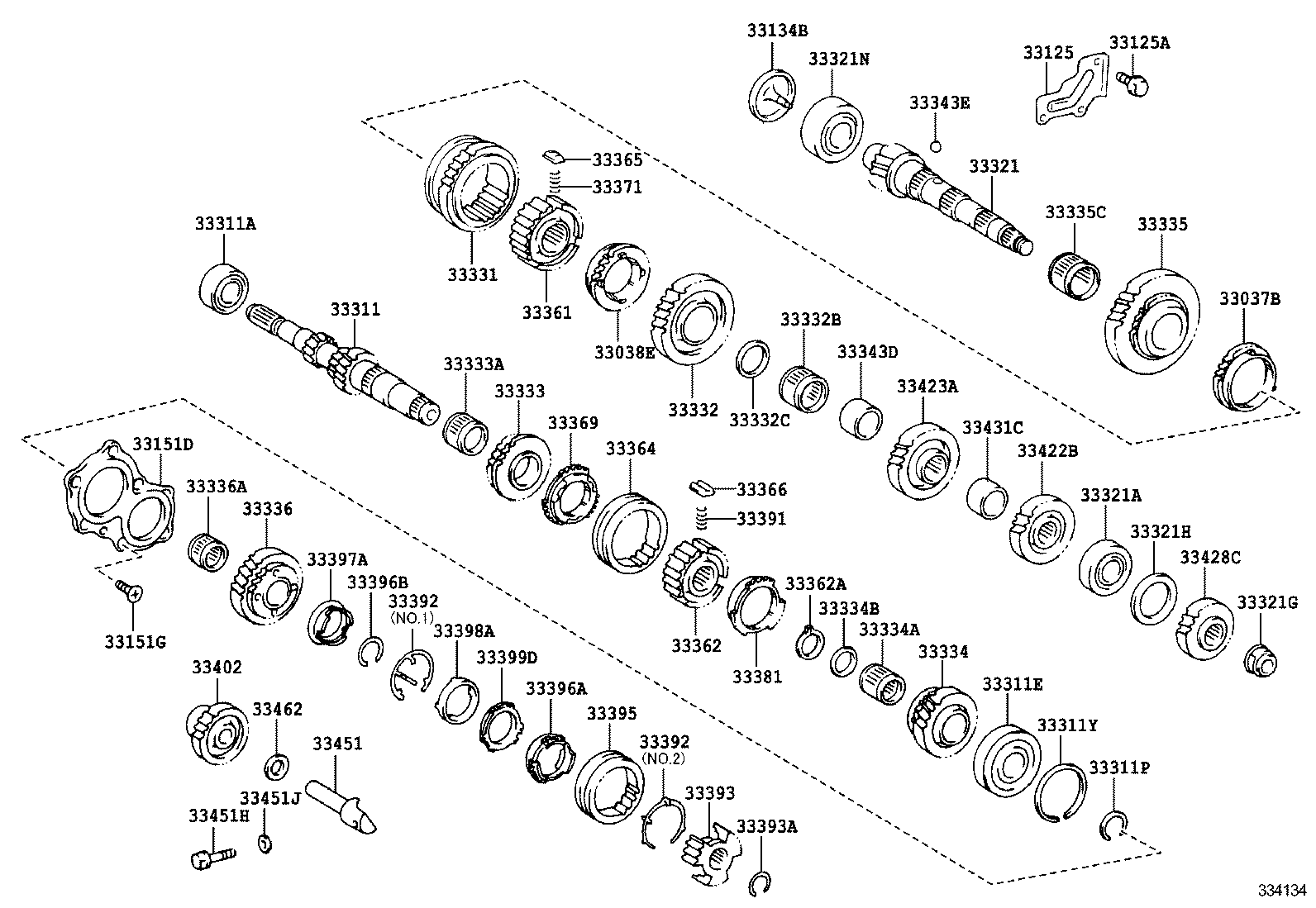

TRANSMISSION GEAR MTM

E358 (0402- )CUR10

COROLLA VERSO | TRANSMISSION GEAR MTM 33037B - RING SET, SYNCHRONIZER, NO.1 33038E - RING SET, SYNCHRONIZER, NO.2 33125 - RECEIVER, MANUAL TRANSAXLE CASE 33125A - BOLT(FOR TRANSAXLE CASE RECEIVER) 33134B - COVER, OUTPUT SHAFT(MTM) 33151D - RETAINER, BEARING, REAR(MTM) 33151G - SCREW(FOR REAR BEARING RETAINER) 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311E - BEARING, RADIAL BALL (FOR INPUT SHAFT REAR) 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) 33311Y - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) 33321H - SHIM (FOR OUTPUT SHAFT REAR BEARING) 33321N - BEARING (FOR OUTPUT SHAFT FRONT) 33331 - GEAR, REVERSE 33332 - GEAR, 2ND 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) 33332C - SPACER (FOR 2ND GEAR BEARING) 33333 - GEAR, 3RD 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) 33334 - GEAR, 4TH 33334A - BEARING, NEEDLE ROLLER (FOR 4TH GEAR) 33334B - SPACER (FOR 4TH GEAR BEARING) 33335 - GEAR, 1ST 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33336 - GEAR, 5TH 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) 33343D - BUSH, 2ND GEAR 33343E - BALL (FOR 2ND GEAR BUSH) 33361 - HUB, TRANSMISSION CLUTCH, NO.1 33362 - HUB, TRANSMISSION CLUTCH, NO.2 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) 33364 - SLEEVE, TRANSMISSION HUB, NO.2 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33369 - RING, SYNCHRONIZER, NO.3 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33381 - RING, 2ND SYNCHRONIZER OUTER 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 33393 - HUB, TRANSMISSION CLUTCH, NO.3 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) 33395 - SLEEVE, TRANSMISSION HUB, NO.3 33396A - RING, SYNCHRONIZER PULL 33396B - RING, SNAP (FOR SYNCHRONIZER PULL RING) 33397A - RING, SYNCHRONIZER, INNER NO.5 33398A - RING, SYNCHRONIZER, MIDDLE NO.5 33399D - RING, SYNCHRONIZER, OUTER NO.5 33402 - GEAR SUB-ASSY, REVERSE IDLER 33422B - GEAR, 4TH DRIVEN 33423A - GEAR, 3RD DRIVEN 33428C - GEAR, 5TH DRIVEN 33431C - SPACER, OUTPUT GEAR 33451 - SHAFT, REVERSE IDLER GEAR 33451H - BOLT (FOR REVERSE IDLER GEAR SHAFT) 33451J - GASKET (FOR REVERSE IDLER GEAR SHAFT) 33462 - WASHER, REVERSE IDLER THRUST
