TOYOTA COROLLA VERSO CUR10L-GRMEYW / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

AIR CLEANER

(0402-0508)1CDFTV

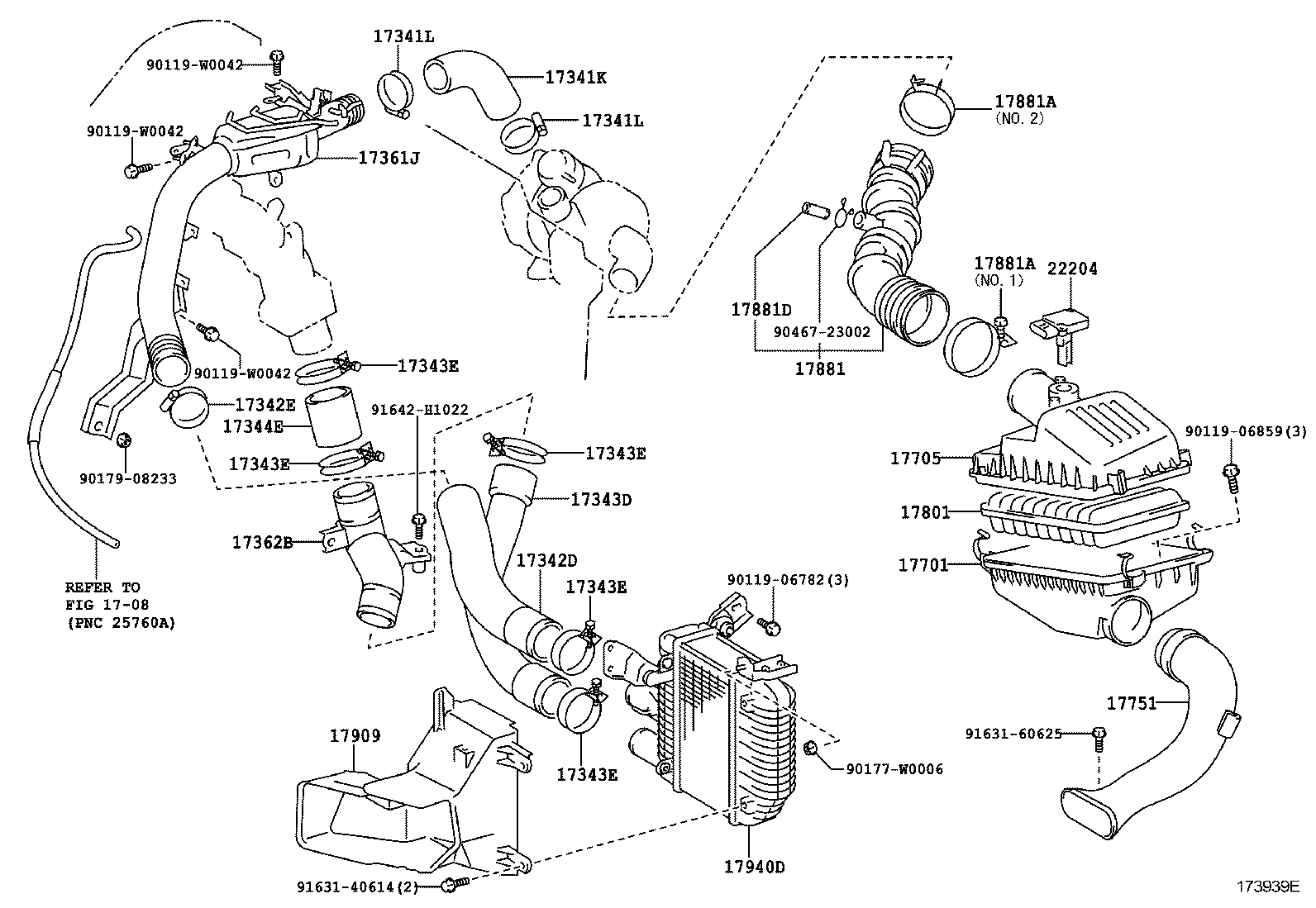

COROLLA VERSO | AIR CLEANER ** Refer Fig 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) 17341L - CLAMP, HOSE 17341L - CLAMP, HOSE 17342D - HOSE, AIR, NO.2 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) 17343D - HOSE, AIR, NO.3 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17344E - HOSE, AIR, NO.4 17361J - TUBE, AIR, NO.1 17362B - TUBE, AIR, NO.2 17701 - CASE SUB-ASSY, AIR CLEANER 17705 - CAP SUB-ASSY, AIR CLEANER 17751 - INLET, AIR CLEANER, NO.1 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881D - TUBE, UNION(FOG AIR CLEANER HOSE) 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR 17940D - INTERCOOLER ASSY 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
