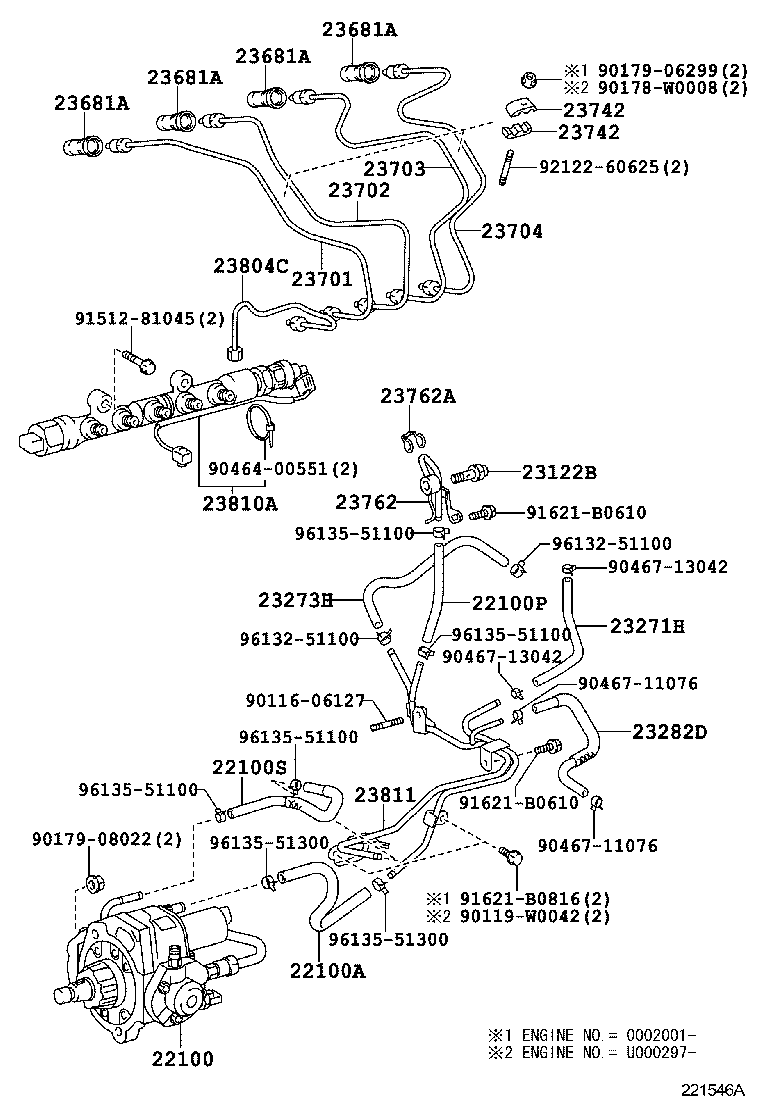

INJECTION PUMP ASSEMBLY

(0402-0508)1CDFTV

COROLLA VERSO | INJECTION PUMP ASSEMBLY 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE) 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) 23122B - VALVE, CHECK 23271H - HOSE, FUEL, NO.1 23273H - HOSE, FUEL, NO.2 23282D - HOSE, FUEL, NO.4 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23762 - PIPE, NOZZLE LEAKAGE, NO.2 23762A - GASKET, NOZZLE LEAKAGE PIPE NO.2 23804C - PIPE SUB-ASSY, FUEL INLET 23810A - RAIL ASSY, COMMON 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
