TOYOTA LAND CRUISER 100 HDJ100L-GNAEZW / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT STEERING GEAR LINK

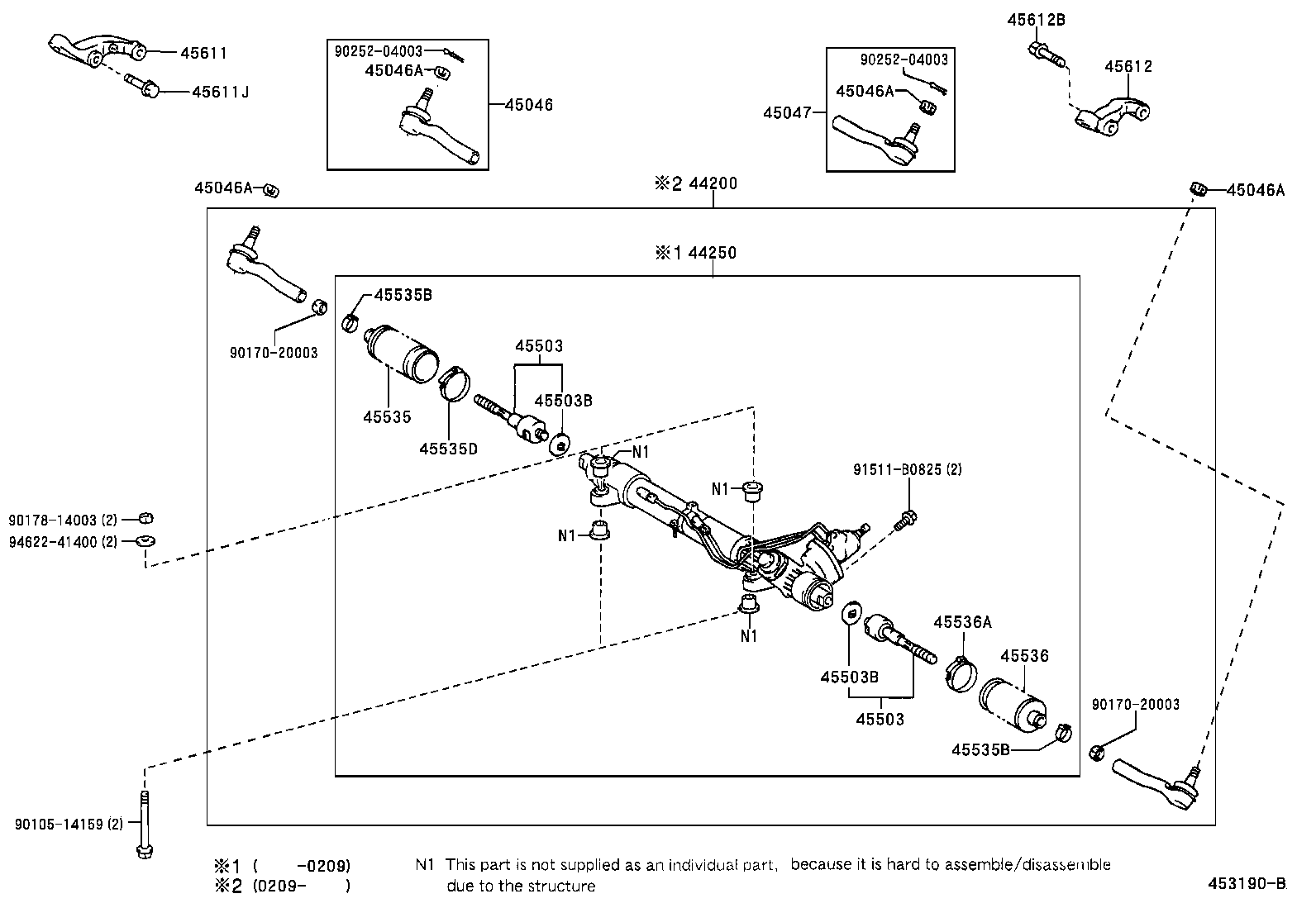

ILLUST NO. 1 OF 2(0208- )LHD

 LAND CRUISER 100 |  FRONT STEERING GEAR LINK 44200 - LINK ASSY, POWER STEERING 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) 45046 - END SUB-ASSY, TIE ROD, RH 45046A - NUT, CASTLE(FOR TIE ROD END) 45046A - NUT, CASTLE(FOR TIE ROD END) 45046A - NUT, CASTLE(FOR TIE ROD END) 45046A - NUT, CASTLE(FOR TIE ROD END) 45047 - END SUB-ASSY, TIE ROD, LH 45503 - END SUB-ASSY, STEERING RACK 45503 - END SUB-ASSY, STEERING RACK 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45535 - BOOT, STEERING RACK, NO.1 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) 45536 - BOOT, STEERING RACK, NO.2 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) 45611 - ARM, STEERING KNUCKLE, RH 45611J - BOLT(FOR STEERING KNUCKLE ARM RH) 45612 - ARM, STEERING KNUCKLE, LH 45612B - BOLT(FOR STEERING KNUCKLE ARM LH)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
