TOYOTA LAND CRUISER 120 KDJ125R-GJFEYW / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

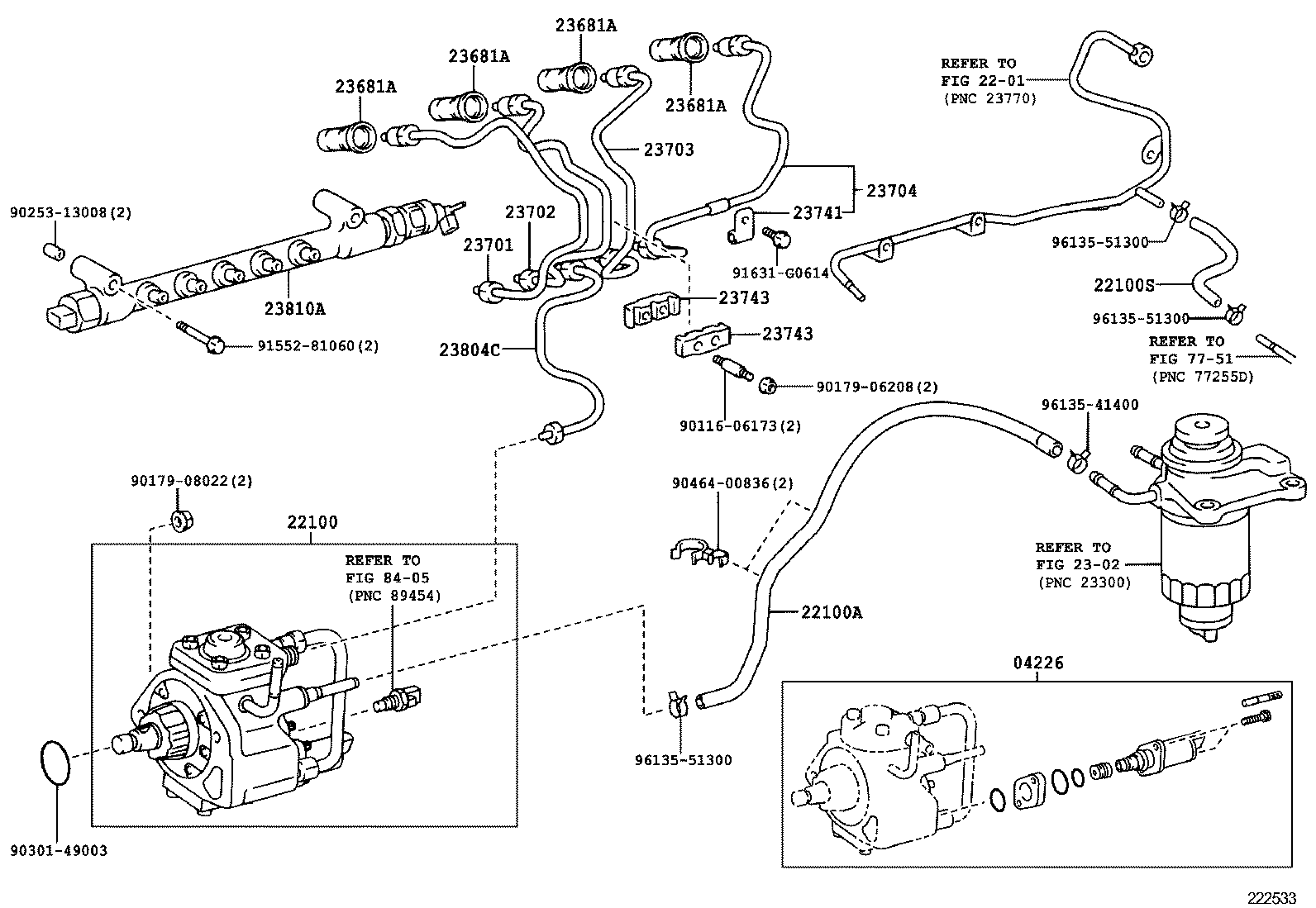

INJECTION PUMP ASSEMBLY

(0408-0608)1KDFTV

LAND CRUISER 120 | INJECTION PUMP ASSEMBLY 04226 - VALVE KIT, SUCTION CONTROL ** Refer Fig 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) ** Refer Fig 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23741 - CLAMP, INJECTION PIPE, NO.1 23743 - CLAMP, INJECTION PIPE, NO.3 23743 - CLAMP, INJECTION PIPE, NO.3 23804C - PIPE SUB-ASSY, FUEL INLET 23810A - RAIL ASSY, COMMON ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
