HEATING AIR CONDITIONING COOLER PIPING

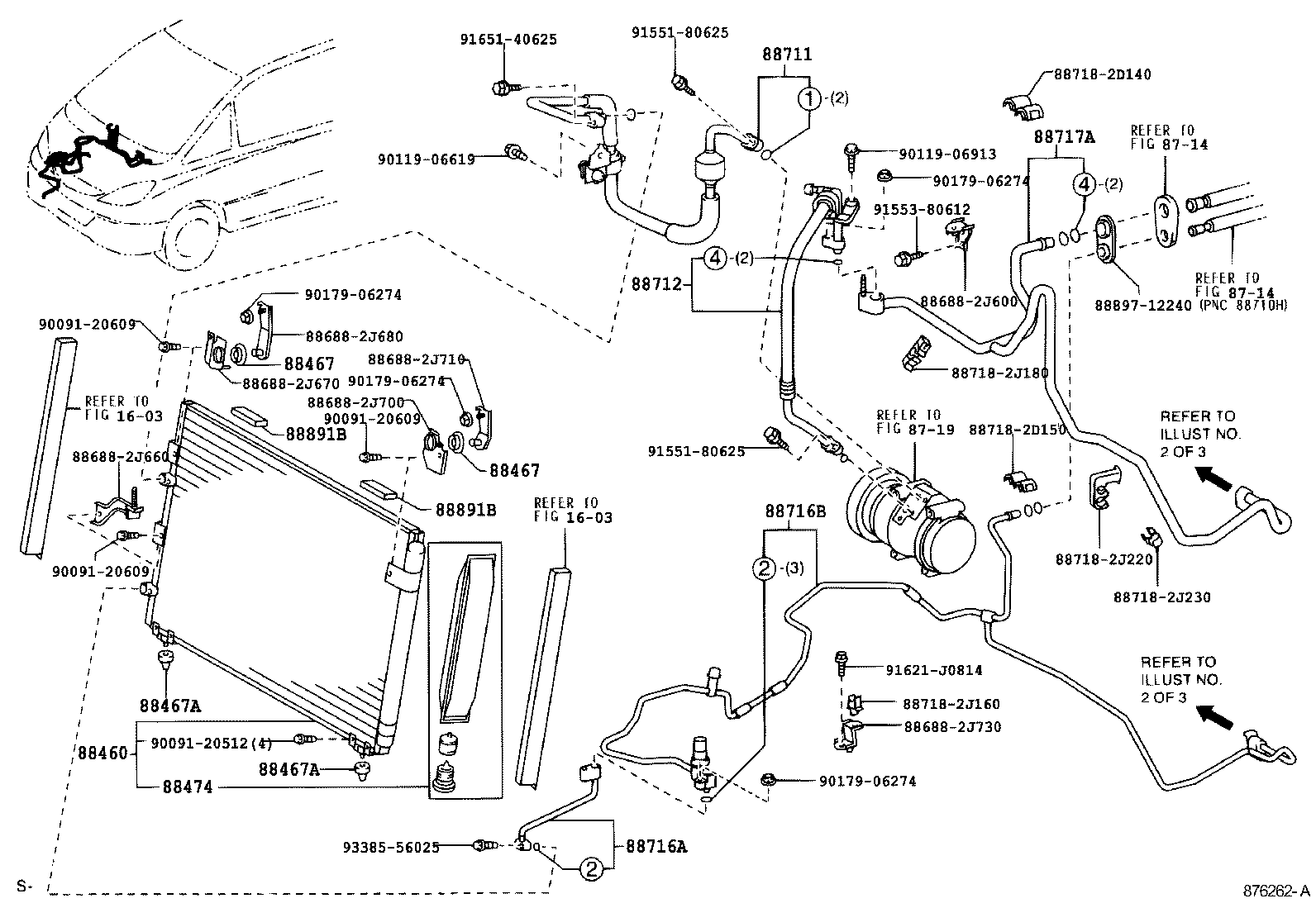

FRONT--W(REAR COOLER) ILLUST NO. 1 OF 3(0304- )ACR30..LHD

PREVIA TARAGO | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88474 - DRYER, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88717A - PIPE, COOLER REFRIGERANT SUCTION, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88891B - PACKING B (FOR COOLER) 88891B - PACKING B (FOR COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
