TOYOTA YARIS KSP90L-AGMGKW / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FRONT SEAT SEAT TRACK

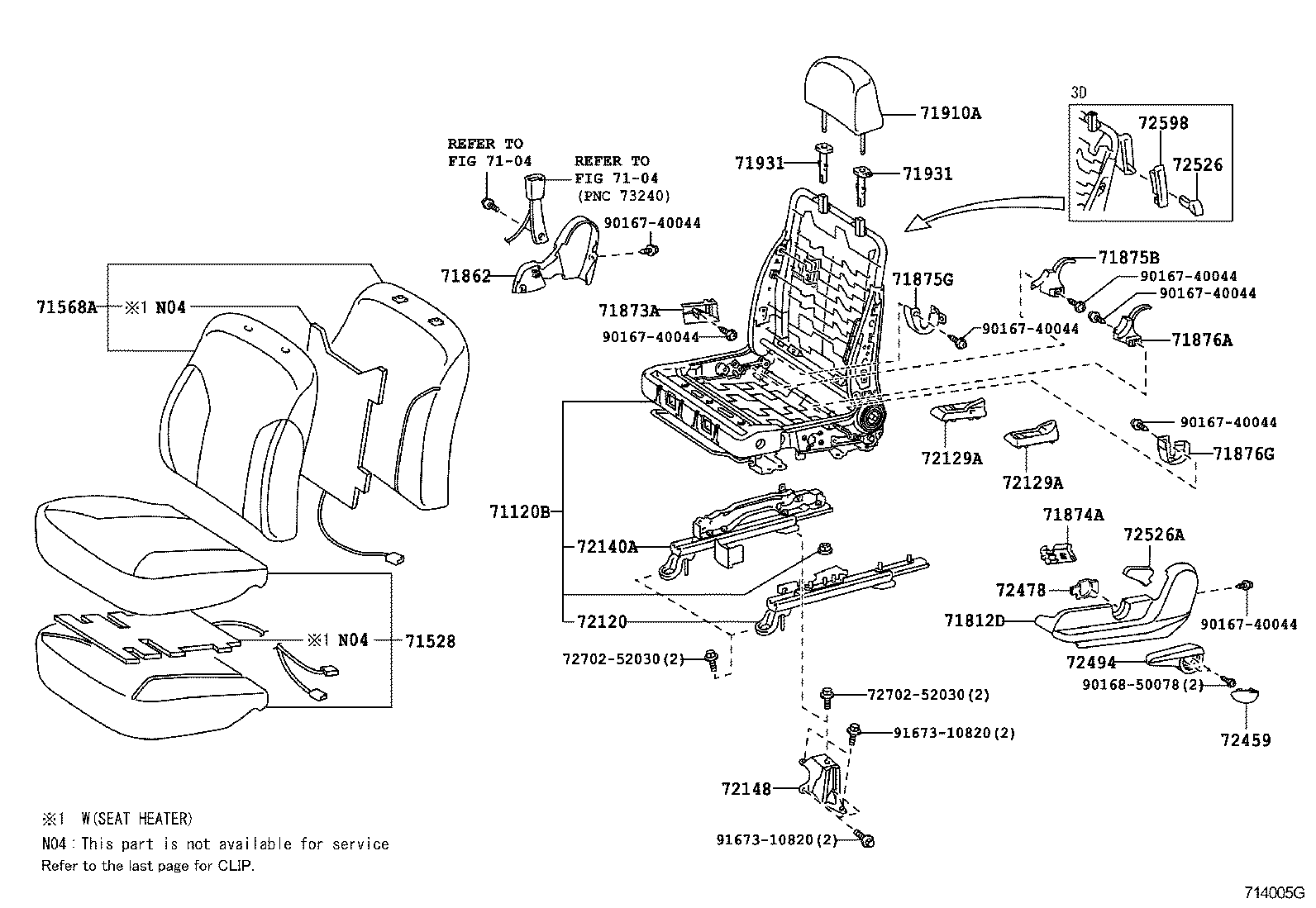

DRIVER SEAT ILLUST NO. 1 OF 2(0508-0808)JPP..LHD..SOL ; (0611-0809)ZSP90..JPP

YARIS | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH 71568A - PAD, FRONT SEAT BACK W/COVER, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72120 - TRACK ASSY, FRONT SEAT, OUTER LH 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 72140A - TRACK ASSY, FRONT SEAT,INNER LH 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB 72478 - BUSH, VERTICAL ADJUSTER 72494 - HANDLE, VERTICAL ADJUSTING, RH 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72598 - BEZEL, RECLINING REMOTE CONTROL LEVER, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
