TOYOTA AURIS HYBRID UKP ADE150R-DHFNXW / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

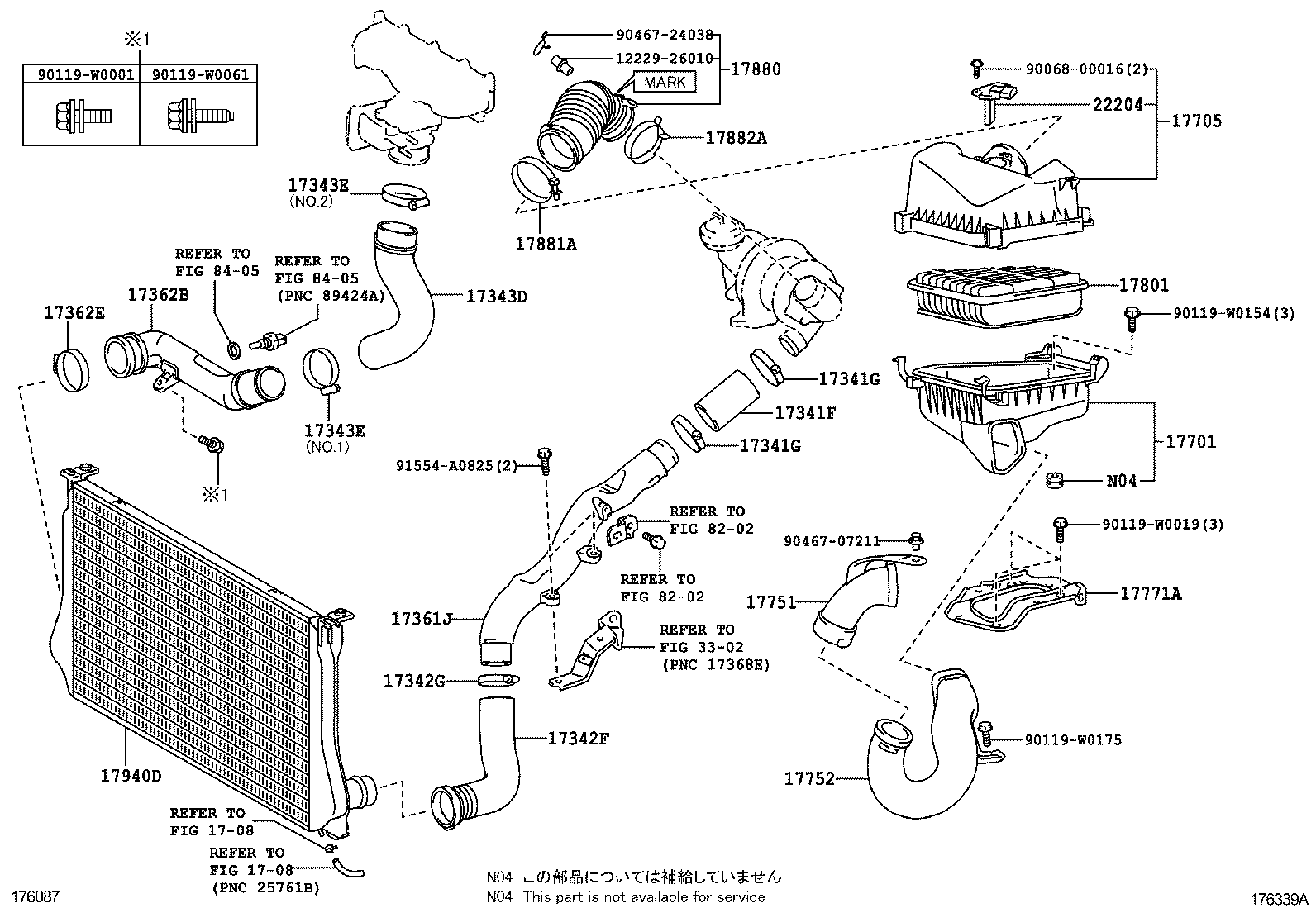

AIR CLEANER

(0903- )1ADFTV,2ADFHV

 AURIS HYBRID UKP |  AIR CLEANER  ** Std Part ** Refer Fig ** Refer Fig 17341F - HOSE, AIR, NO.1 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) 17343D - HOSE, AIR, NO.3 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) 17361J - TUBE, AIR, NO.1 17362B - TUBE, AIR, NO.2 17362E - CLAMP, NO.2(FOR AIR TUBE, NO.2) 17701 - CASE SUB-ASSY, AIR CLEANER 17705 - CAP SUB-ASSY, AIR CLEANER 17751 - INLET, AIR CLEANER, NO.1 17752 - INLET, AIR CLEANER, NO.2 17771A - BRACKET, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17880 - HOSE ASSY, AIR CLEANER 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17940D - INTERCOOLER ASSY 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
