TOYOTA URBAN CRUISER NLP110L-AHFRXW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

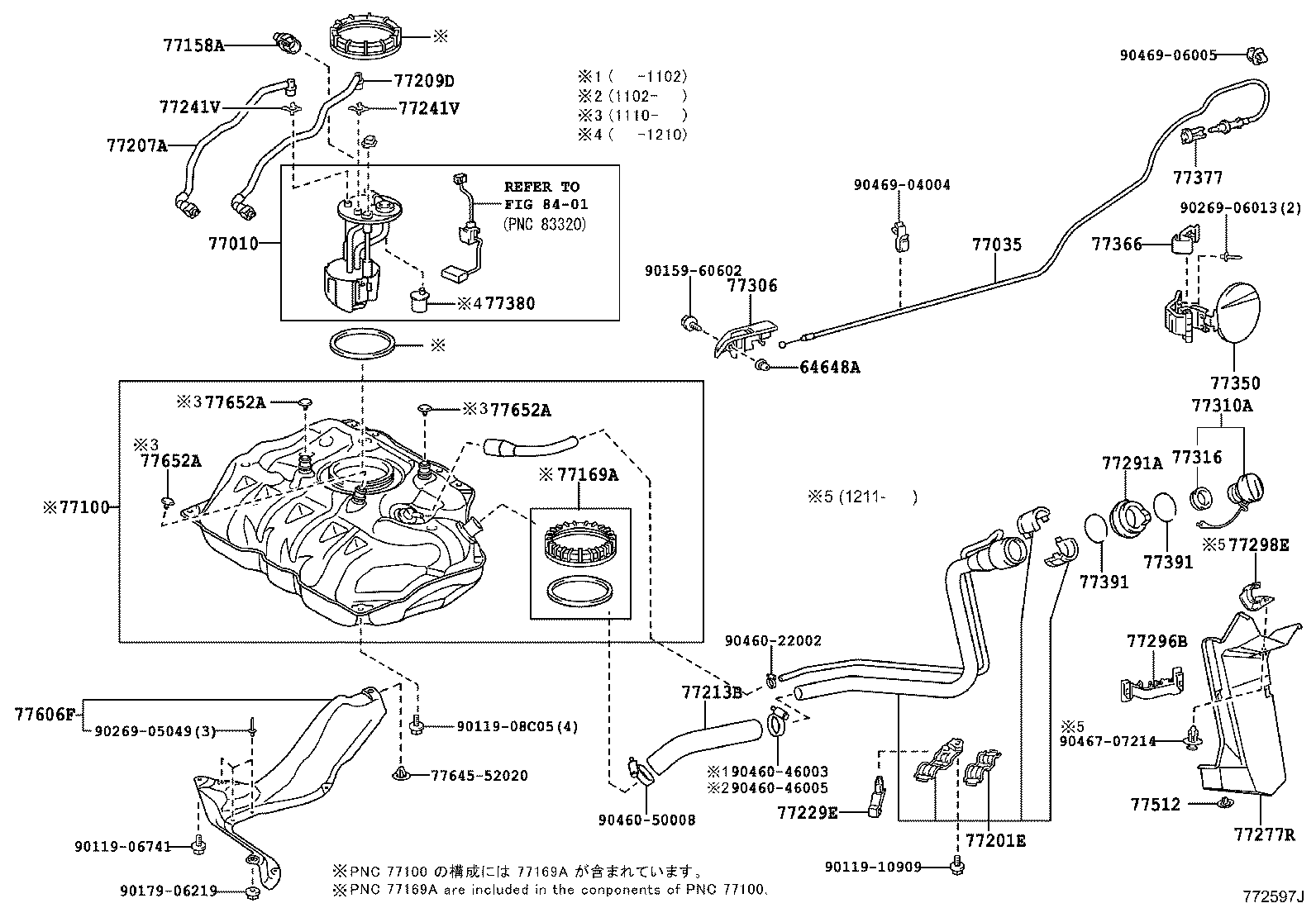

FUEL TANK ILLUST NO. 1 OF 2(0901- )NLP110

 URBAN CRUISER |  FUEL TANK TUBE 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER 77010 - TUBE ASSY, FUEL TANK VENT 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77100 - TANK ASSY, FUEL 77158A - SUPPORT, TANK SUCTION TUBE 77169A - GASKET, FUEL SUCTION TUBE SET 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77207A - TUBE SUB-ASSY, FUEL RETURN 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213B - HOSE, FUEL TANK TO FILLER PIPE 77229E - CLAMP, BREATHER TUBE 77241V - CLIP, TUBE JOINT 77241V - CLIP, TUBE JOINT 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 77298E - SUPPORT, FUEL TUBE PROTECTOR, NO.3 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77377 - RETAINER, FUEL FILLER OPENING LID LOCK 77380 - VALVE ASSY, FUEL CUT OFF 77391 - RING, FUEL INLET BOX 77391 - RING, FUEL INLET BOX 77512 - BRACKET, FUEL TANK, REAR 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT  ** Std Part 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
