TOYOTA URBAN CRUISER NLP110L-AHFRXW / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

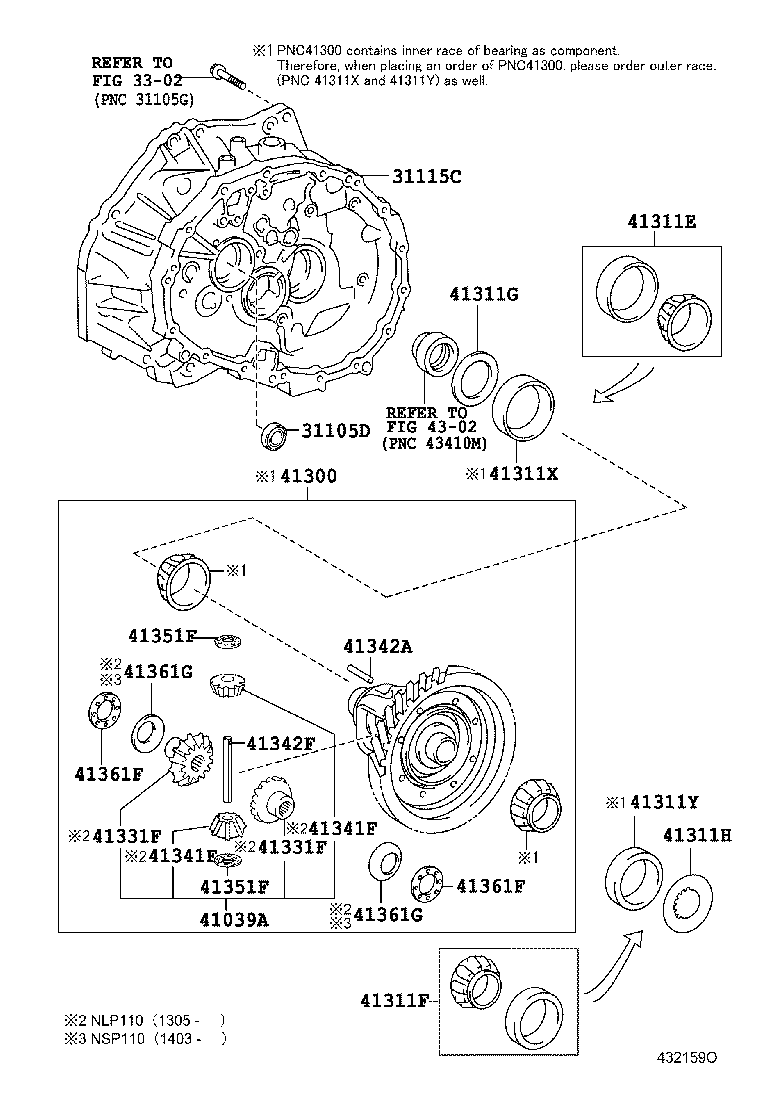

FRONT AXLE HOUSING DIFFERENTIAL

EC63,EC65 (0901- )NLP110,NSP110

 URBAN CRUISER |  FRONT AXLE HOUSING DIFFERENTIAL 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) 31115C - CASE, FRONT TRANSAXLE(MTM) ** Refer Fig 41039A - GEAR KIT, DIFFERENTIAL 41300 - CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT) 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR) 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) 41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRONT) 41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR) 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41341F - PINION, FRONT DIFFERENTIAL 41341F - PINION, FRONT DIFFERENTIAL 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR) 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEAR) ** Refer Fig
