TOYOTA URBAN CRUISER NLP110L-AHFRXW / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

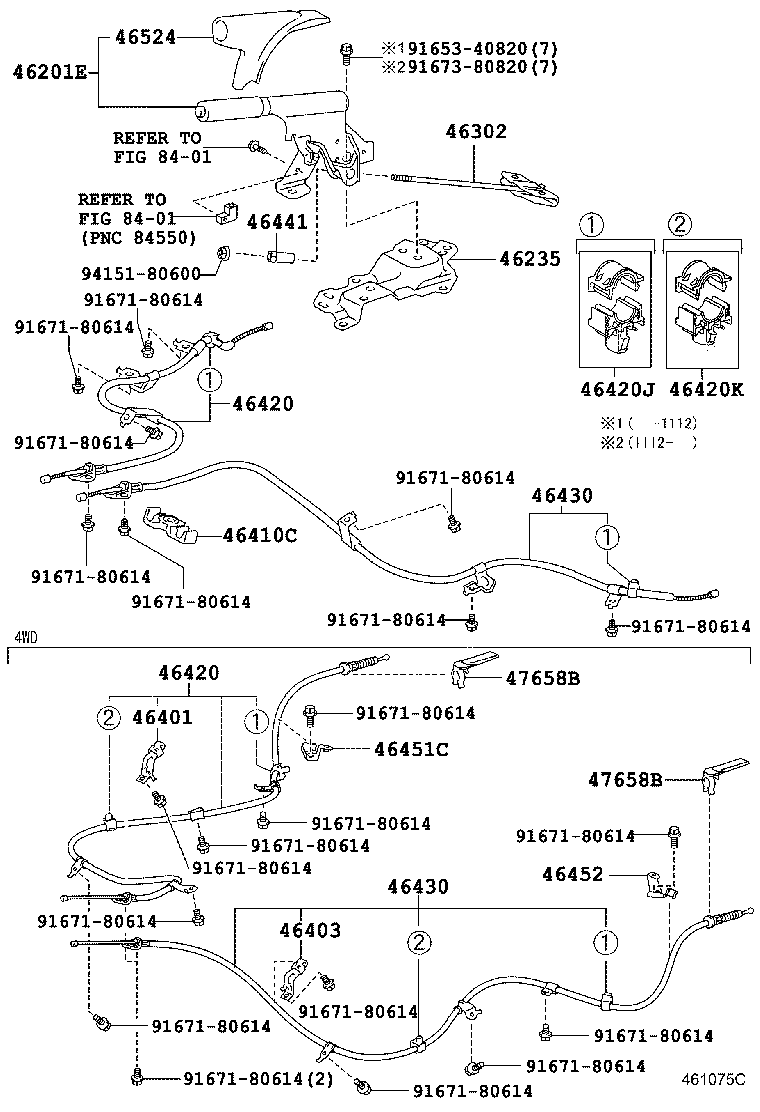

PARKING BRAKE CABLE

(0901- )

 URBAN CRUISER |  PARKING BRAKE CABLE 46201E - LEVER SUB-ASSY, PARKING BRAKE 46235 - BRACKET, PARKING BRAKE LEVER SUPPORT 46302 - ROD SUB-ASSY, PARKING BRAKE PULL, NO.1 46401 - BRACKET SUB-ASSY, CABLE SUPPORT 46403 - BRACKET SUB-ASSY, CABLE SUPPORT, LH 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420 - CABLE ASSY, PARKING BRAKE, NO.2 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46430 - CABLE ASSY, PARKING BRAKE, NO.3 46441 - NUT, WIRE ADJUSTING, NO.1 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 46524 - COVER, PARKING BRAKE DUST 47658B - PROTECTOR, PARKING BRAKE LEVER 47658B - PROTECTOR, PARKING BRAKE LEVER ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
