TOYOTA URBAN CRUISER NLP115L-AHFNXW / ELECTRICAL / WINDSHIELD WASHER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

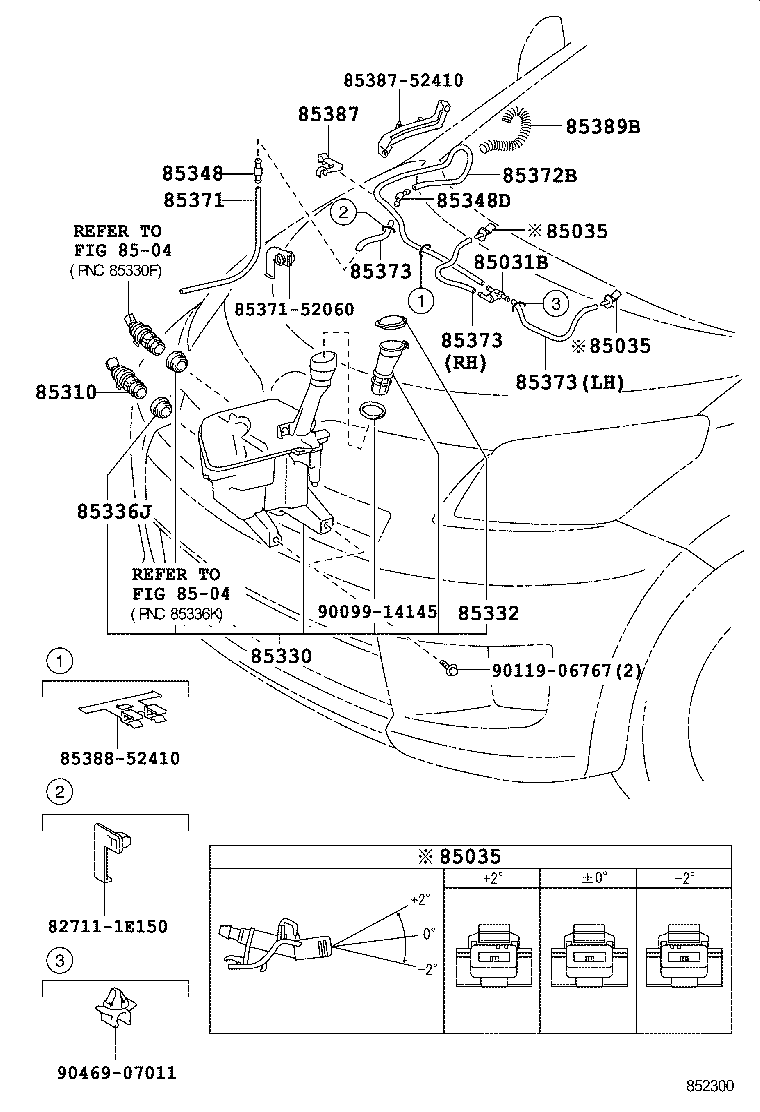

WINDSHIELD WASHER

(0901- )

 URBAN CRUISER |  WINDSHIELD WASHER  ** Std Part 85031B - VALVE SUB-ASSY, WASHER 85035 - NOZZLE SUB-ASSY, WASHER 85035 - NOZZLE SUB-ASSY, WASHER 85035 - NOZZLE SUB-ASSY, WASHER ** Refer Fig ** Refer Fig 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER 85330 - JAR ASSY, WINDSHIELD WASHER 85332 - CAP, WINDSHIELD WASHER JAR 85336J - PROTECTOR, WASHER JAR 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)  ** Std Part 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)  ** Std Part  ** Std Part 85389B - PROTECTOR, WINDSHIELD WASHER  ** Std Part  ** Std Part  ** Std Part
