TOYOTA LAND CRUISER 150 KDJ150L-GKAEYW / POWERTRAIN-CHASSIS / REAR AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

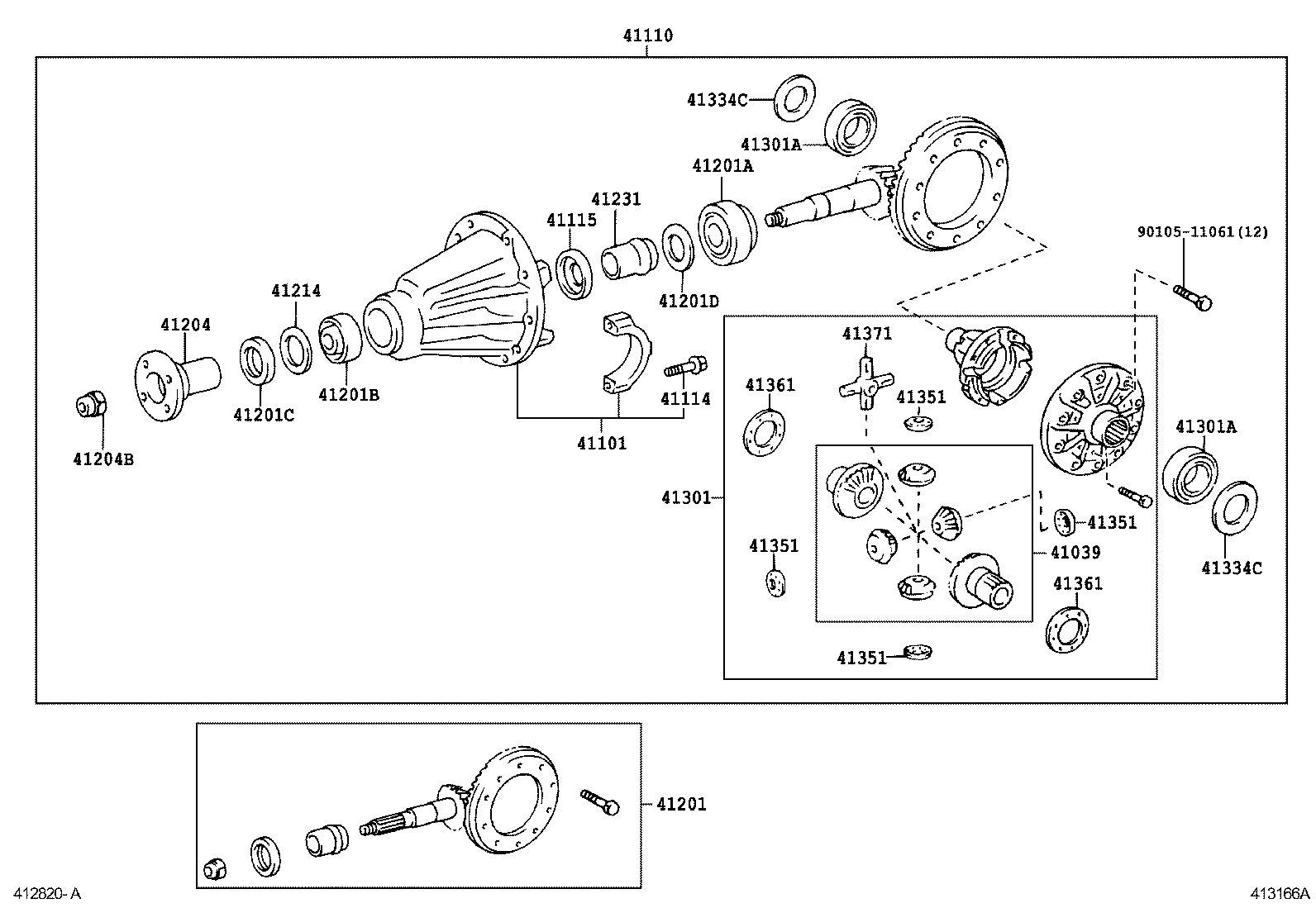

REAR AXLE HOUSING DIFFERENTIAL

ILLUST NO. 1 OF 2(0908- )

 LAND CRUISER 150 |  REAR AXLE HOUSING DIFFERENTIAL 41039 - GEAR KIT, DIFFERENTIAL, REAR 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR 41110 - CARRIER ASSY, DIFFERENTIAL, REAR 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP 41115 - RING, DIFFERENTIAL OIL STORAGE 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR 41201A - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION REAR) 41201B - BEARING, TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR 41204B - NUT (FOR REAR DRIVE PINION) 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 41371 - SPIDER, REAR DIFFERENTIAL  ** Std Part
