TOYOTA LAND CRUISER 150 KDJ150L-GKAEYW / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

(0908- )LHD

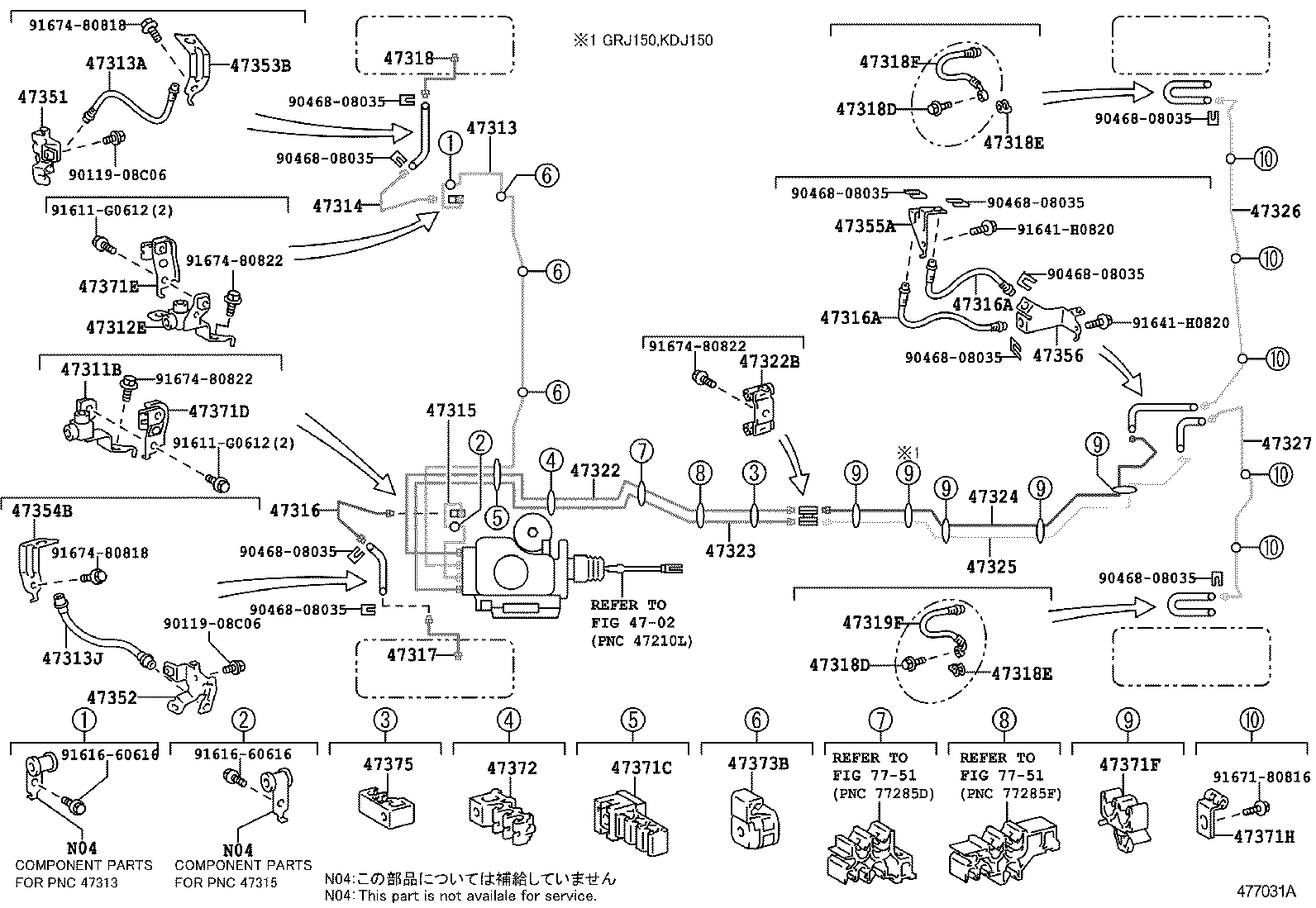

 LAND CRUISER 150 |  BRAKE TUBE CLAMP ** Refer Fig 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) 47314 - TUBE, FRONT BRAKE, NO.4 47315 - TUBE, FRONT BRAKE, NO.5 47316 - TUBE, FRONT BRAKE, NO.6 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47317 - TUBE, FRONT BRAKE, NO.7 47318 - TUBE, FRONT BRAKE, NO.8 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47322 - TUBE, REAR BRAKE, NO.2 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) 47323 - TUBE, REAR BRAKE, NO.3 47324 - TUBE, REAR BRAKE, NO.4 47325 - TUBE, REAR BRAKE, NO.5 47326 - TUBE, REAR BRAKE, NO.6 47327 - TUBE, REAR BRAKE, NO.7 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) 47353B - BRACKET, FLEXIBLE HOSE, NO.3 47354B - BRACKET, FLEXIBLE HOSE, NO.4 47355A - BRACKET, FLEXIBLE HOSE, NO.5 47356 - BRACKET, FLEXIBLE HOSE, NO.6 47371C - CLAMP, BRAKE TUBE, NO.7 47371D - CLAMP, BRAKE TUBE, NO.8 47371E - CLAMP, BRAKE TUBE, NO.9 47371F - CLAMP, BRAKE TUBE, NO.10 47371H - CLAMP, BRAKE TUBE, NO.12 47372 - CLAMP, BRAKE TUBE, NO.2 47373B - CLAMP, BRAKE TUBE, NO.3 47375 - CLAMP, BRAKE TUBE, NO.5 ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
