TOYOTA LAND CRUISER 150 KDJ150L-GKFEYW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

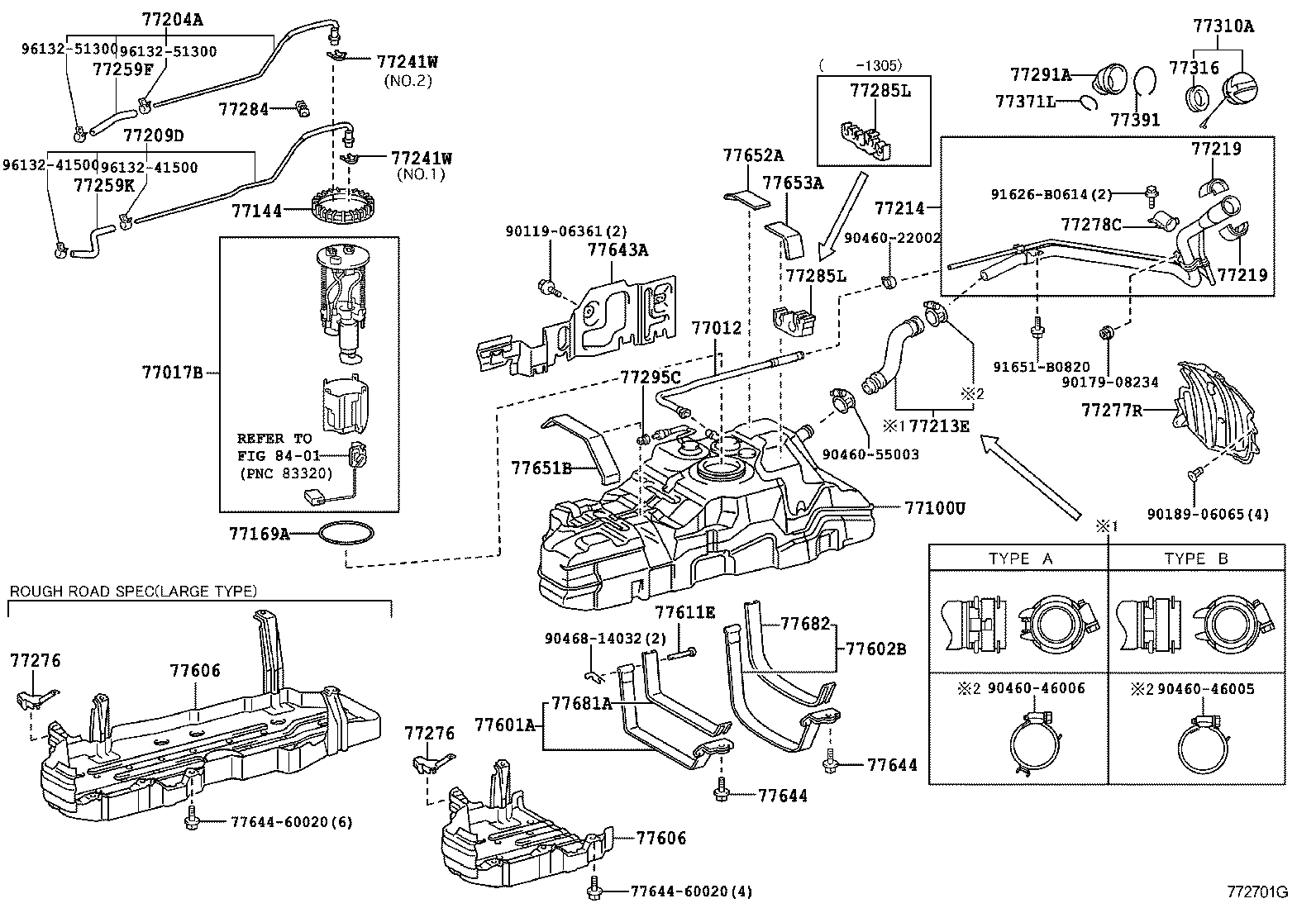

FUEL TANK ILLUST NO. 1 OF 3(0908- )KDJ150

LAND CRUISER 150 | FUEL TANK TUBE 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77100U - TANK SUB-ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77204A - TUBE, FUEL TANK RETURN 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77214 - PIPE, FUEL TANK FILLER 77219 - COVER, FUEL TANK FILLER PIPE 77219 - COVER, FUEL TANK FILLER PIPE 77241W - CLIP, TUBE JOINT 77241W - CLIP, TUBE JOINT 77259F - HOSE, FUEL 77259K - HOSE, FUEL 77276 - PROTECTOR, FUEL HOSE 77276 - PROTECTOR, FUEL HOSE 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77284 - CLAMP, FUEL TUBE 77285L - CLAMP, FUEL TUBE, NO.1 77285L - CLAMP, FUEL TUBE, NO.1 77291A - SHIELD, FUEL TANK FILLER PIPE 77295C - GROMMET, FUEL TUBE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77371L - RING, FUEL TANK FILLER PIPE SHIELD 77391 - RING, FUEL INLET BOX 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77611E - PIN, FUEL TANK BAND 77643A - PROTECTOR, FUEL TANK, NO.3 77644 - BOLT, FUEL TANK 77644 - BOLT, FUEL TANK ** Std Part ** Std Part 77651B - CUSHION, FUEL TANK 77652A - CUSHION, FUEL TANK, NO.2 77653A - CUSHION, FUEL TANK, NO.3 77681A - SEAT, FUEL TANK BAND 77682 - SEAT, FUEL TANK BAND, LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
