TOYOTA LAND CRUISER 150 GRJ150R-GKAEKW / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

OIL COOLER TUBE ATM

A750F (0908- )GRJ150

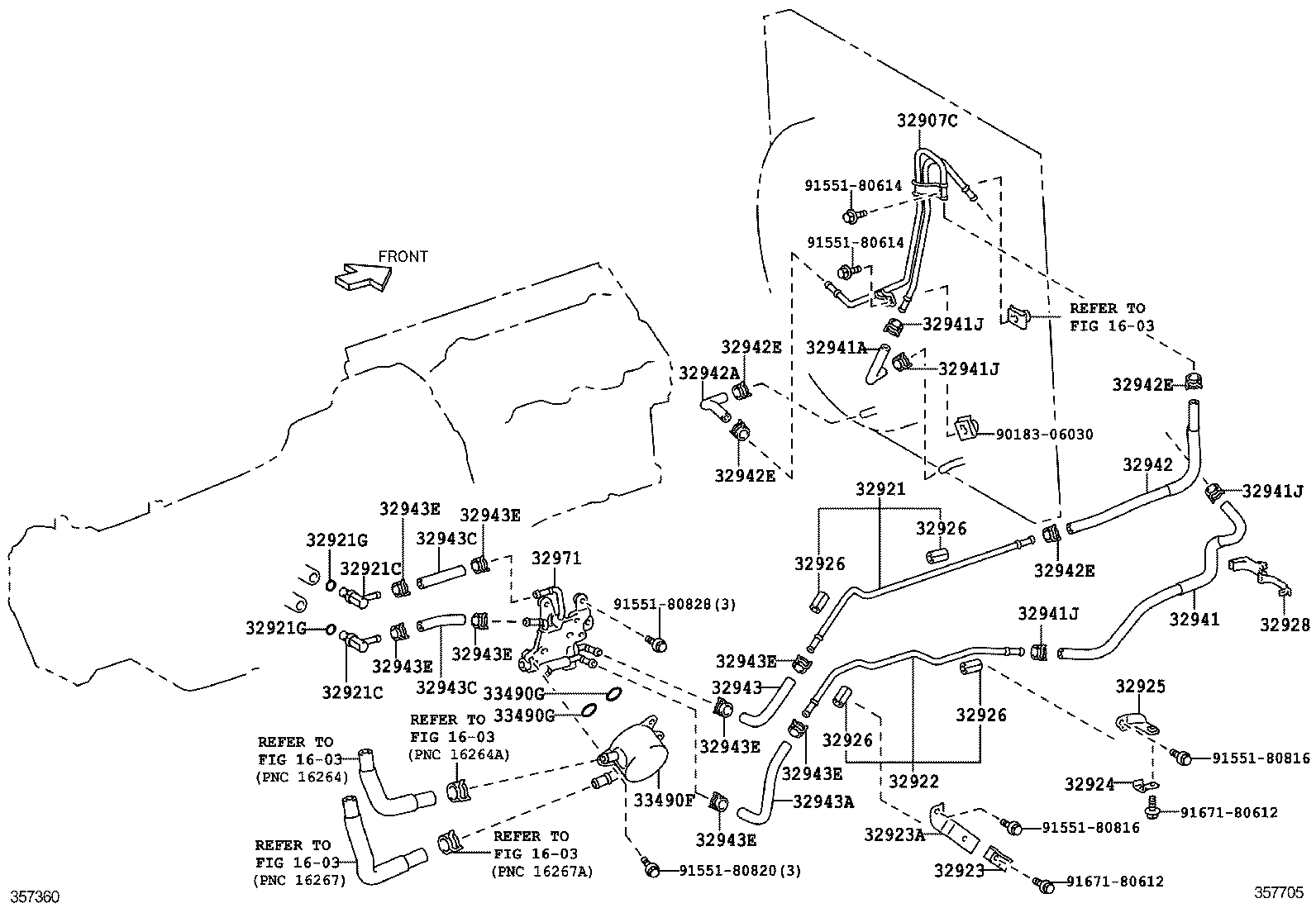

 LAND CRUISER 150 |  OIL COOLER TUBE ATM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 32921 - TUBE, OIL COOLER INLET, NO.1 32921C - UNION(FOR OIL COOLER TUBE) 32921C - UNION(FOR OIL COOLER TUBE) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32922 - TUBE, OIL COOLER OUTLET, NO.1 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE 32924 - CLAMP, OIL COOLER TUBE, NO.2 32925 - CLAMP, OIL COOLER TUBE, NO.3 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32928 - CLAMP, FLEXIBLE HOSE, NO.1 32941 - HOSE, OIL COOLER INLET, NO.1 32941A - HOSE, OIL COOLER INLET, NO.2 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32942 - HOSE, OIL COOLER OUTLET, NO.1 32942A - HOSE, OIL COOLER OUTLET, NO.2 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 32943C - HOSE, TRANSMISSION OIL COOLER, NO.3 32943C - HOSE, TRANSMISSION OIL COOLER, NO.3 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32971 - THERMOSTAT, TRANSMISSION OIL 33490F - COOLER ASSY, TRANSMISSION OIL 33490G - RING, O (FOR TRANSMISSION OIL COOLER) 33490G - RING, O (FOR TRANSMISSION OIL COOLER)  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
