TOYOTA AURIS HYBRID UKP ZWE150R-DHXGBW / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

(1006- )ZWE150..RHD

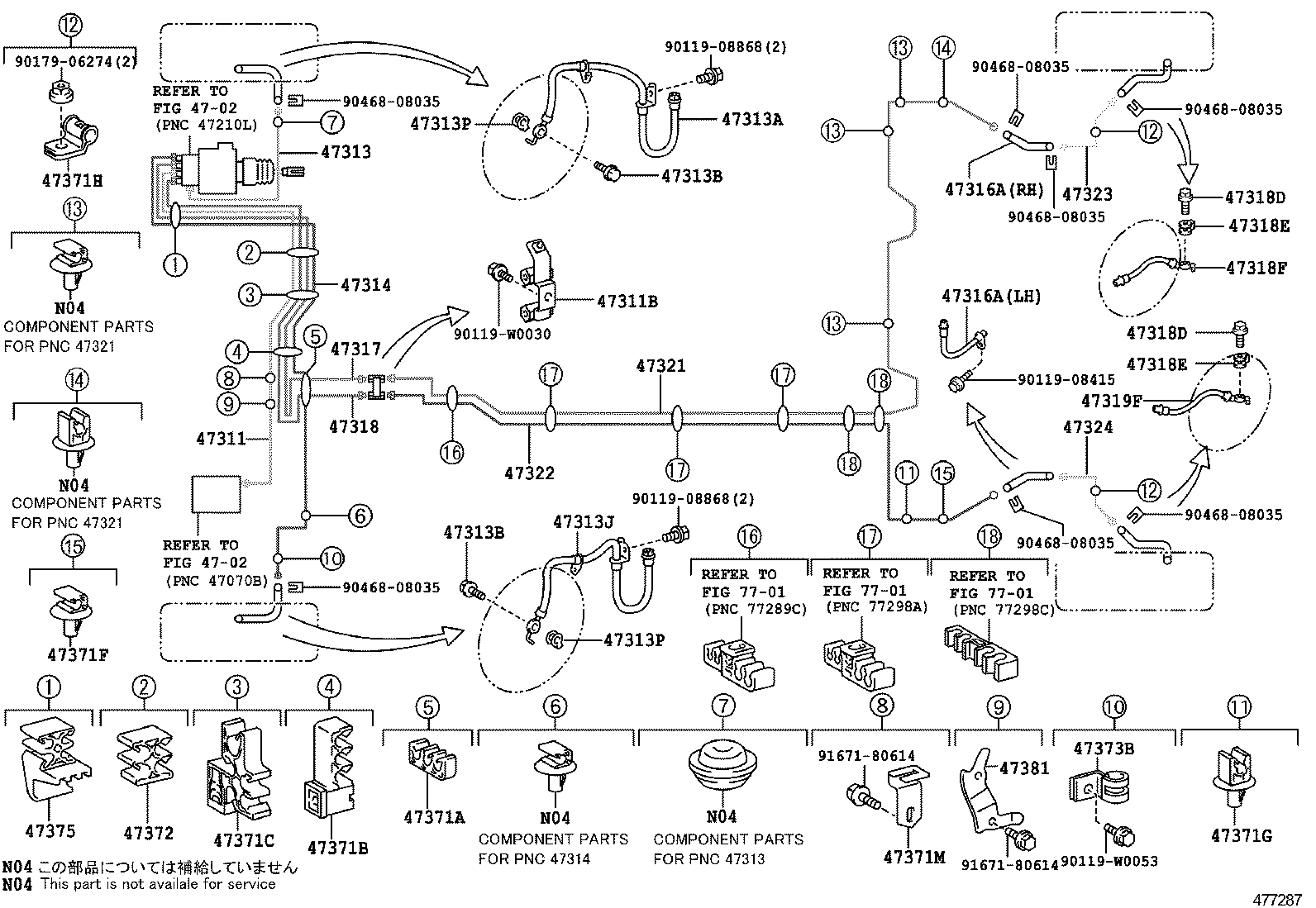

 AURIS HYBRID UKP |  BRAKE TUBE CLAMP ** Refer Fig ** Refer Fig 47311 - TUBE, FRONT BRAKE, NO.1 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47317 - TUBE, FRONT BRAKE, NO.7 47318 - TUBE, FRONT BRAKE, NO.8 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47322 - TUBE, REAR BRAKE, NO.2 47323 - TUBE, REAR BRAKE, NO.3 47324 - TUBE, REAR BRAKE, NO.4 47371A - CLAMP, BRAKE TUBE, NO.1 47371B - CLAMP, BRAKE TUBE, NO.6 47371C - CLAMP, BRAKE TUBE, NO.7 47371F - CLAMP, BRAKE TUBE, NO.10 47371G - CLAMP, BRAKE TUBE, NO.11 47371H - CLAMP, BRAKE TUBE, NO.12 47371M - CLAMP, BRAKE TUBE, NO.13 47372 - CLAMP, BRAKE TUBE, NO.2 47373B - CLAMP, BRAKE TUBE, NO.3 47375 - CLAMP, BRAKE TUBE, NO.5 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
