HEATING AIR CONDITIONING COOLER PIPING

(1405- )PAB40

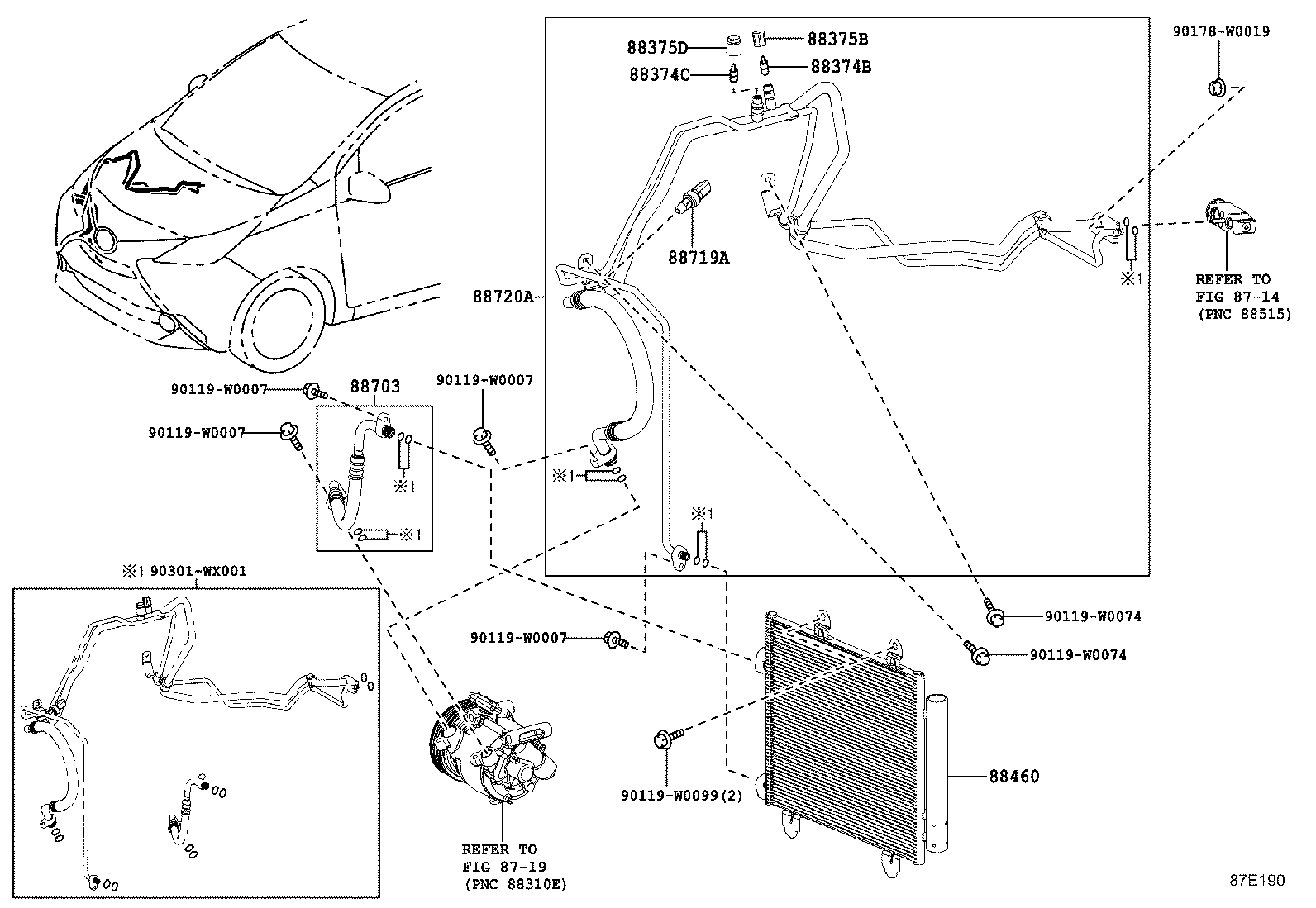

AYGO | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88703 - HOSE SUB-ASSY, DISCHARGE 88719A - SENSOR, AIRCONDITIONER PRESSURE 88720A - HOSE & ACCESSORY, AIRCONDITIONER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
