TOYOTA CELICA RA65R-BCMSEQ / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

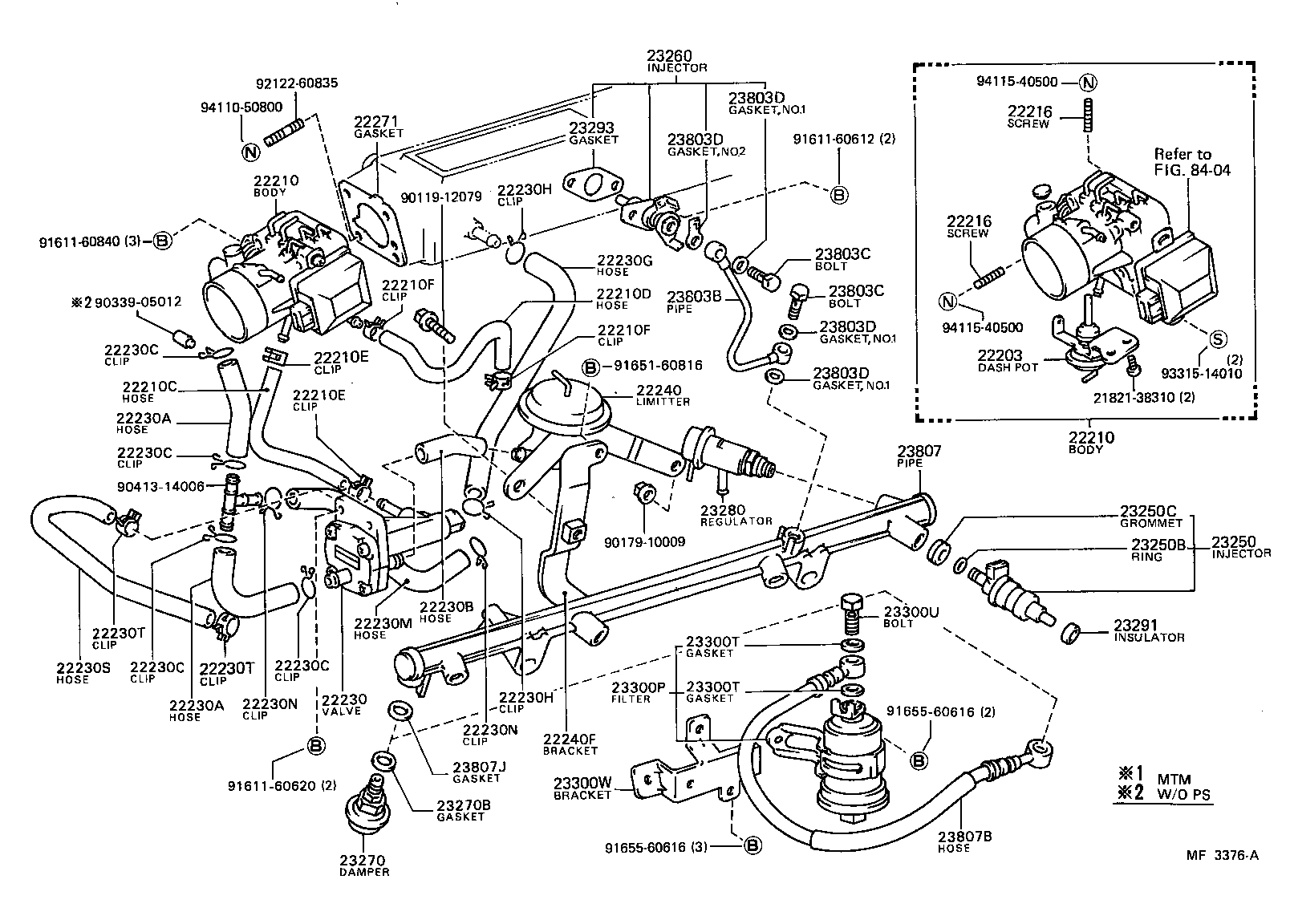

FUEL INJECTION SYSTEM

(8408-8507)22REC..5F

CELICA | FUEL INJECTION SYSTEM ** Std Part 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22210C - HOSE, WATER BY-PASS, NO.1 22210D - HOSE, WATER BY-PASS, NO.2 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22216 - SCREW, DASH POT ADJUSTING 22216 - SCREW, DASH POT ADJUSTING 22230 - VALVE ASSY, AUXILIARY AIR 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 22230G - HOSE, AUXILIARY AIR VALVE, NO.3 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 22230M - HOSE, AUXILIARY AIR VALVE, NO.4 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 22230S - HOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE) 22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS) 22230T - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS) 22240 - LIMITER ASSY, VACUUM 22240F - BRACKET, VACUUM LIMITER 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23300W - BRACKET, FUEL FILTER 23803B - PIPE SUB-ASSY, FUEL, NO.3 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807B - HOSE, FUEL DELIVERY PIPE 23807J - GASKET, PIPE FUEL DELIVARY INLET ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
