TOYOTA DYNA BU40R-MRDT / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

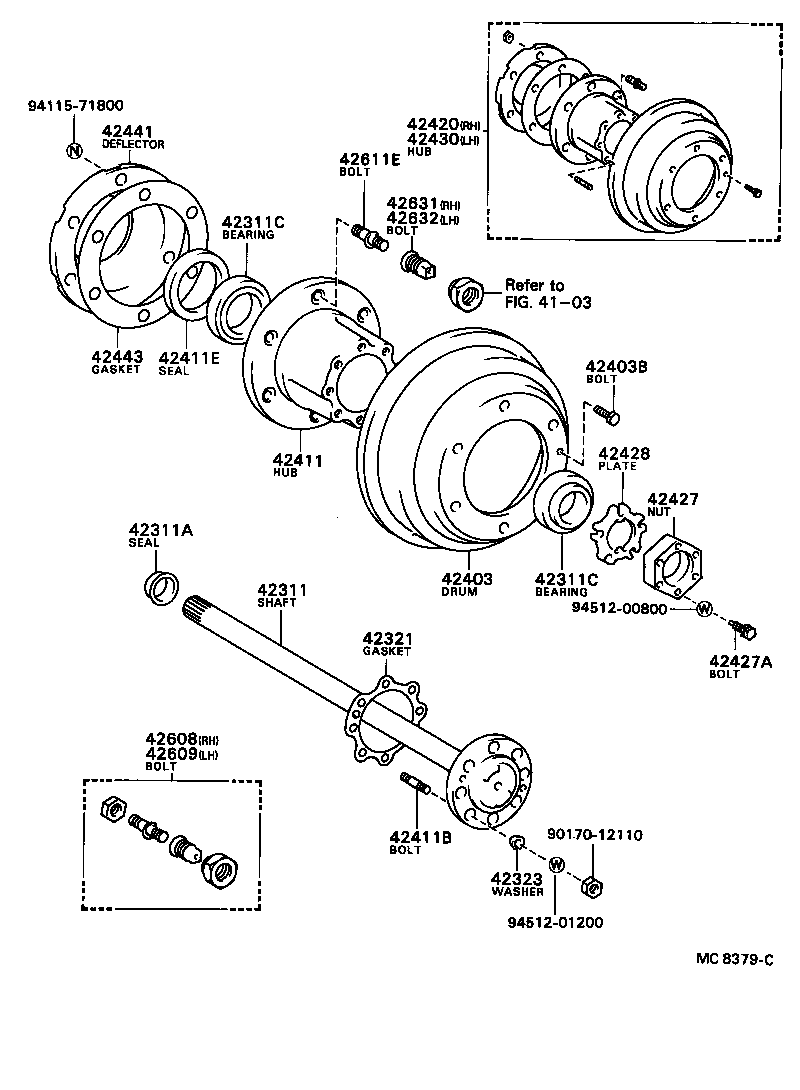

REAR AXLE SHAFT HUB

(8204-8408)BU40,HU40,50,WU40,50

DYNA | REAR AXLE SHAFT HUB ** Refer Fig 42311 - SHAFT, REAR AXLE 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) 42311C - BEARING (FOR REAR AXLE SHAFT) 42311C - BEARING (FOR REAR AXLE SHAFT) 42321 - GASKET, REAR AXLE SHAFT 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) 42403 - DRUM SUB-ASSY, REAR BRAKE 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) 42411 - HUB, REAR AXLE 42411B - BOLT, STUD (FOR REAR AXLE HUB) 42411E - SEAL, OIL (FOR REAR AXLE HUB) 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH 42427 - NUT, REAR AXLE BEARING LOCK 42427A - BOLT (FOR REAR AXLE BEARING LOCK NUT SET) 42428 - PLATE, REAR AXLE LOCK NUT 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH 42441 - DEFLECTOR, BRAKE DRUM OIL 42443 - GASKET, BRAKE DRUM OIL DEFLECTOR 42608 - BOLT SUB-ASSY, REAR AXLE HUB, RH 42609 - BOLT SUB-ASSY, REAR AXLE HUB, LH 42611E - BOLT, HUB (FOR REAR AXLE) 42631 - BOLT, DOUBLE WHEEL STOP, RH 42632 - BOLT, DOUBLE WHEEL STOP, LH ** Std Part ** Std Part ** Std Part ** Std Part
