TOYOTA HILUX LN40R-MSS / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

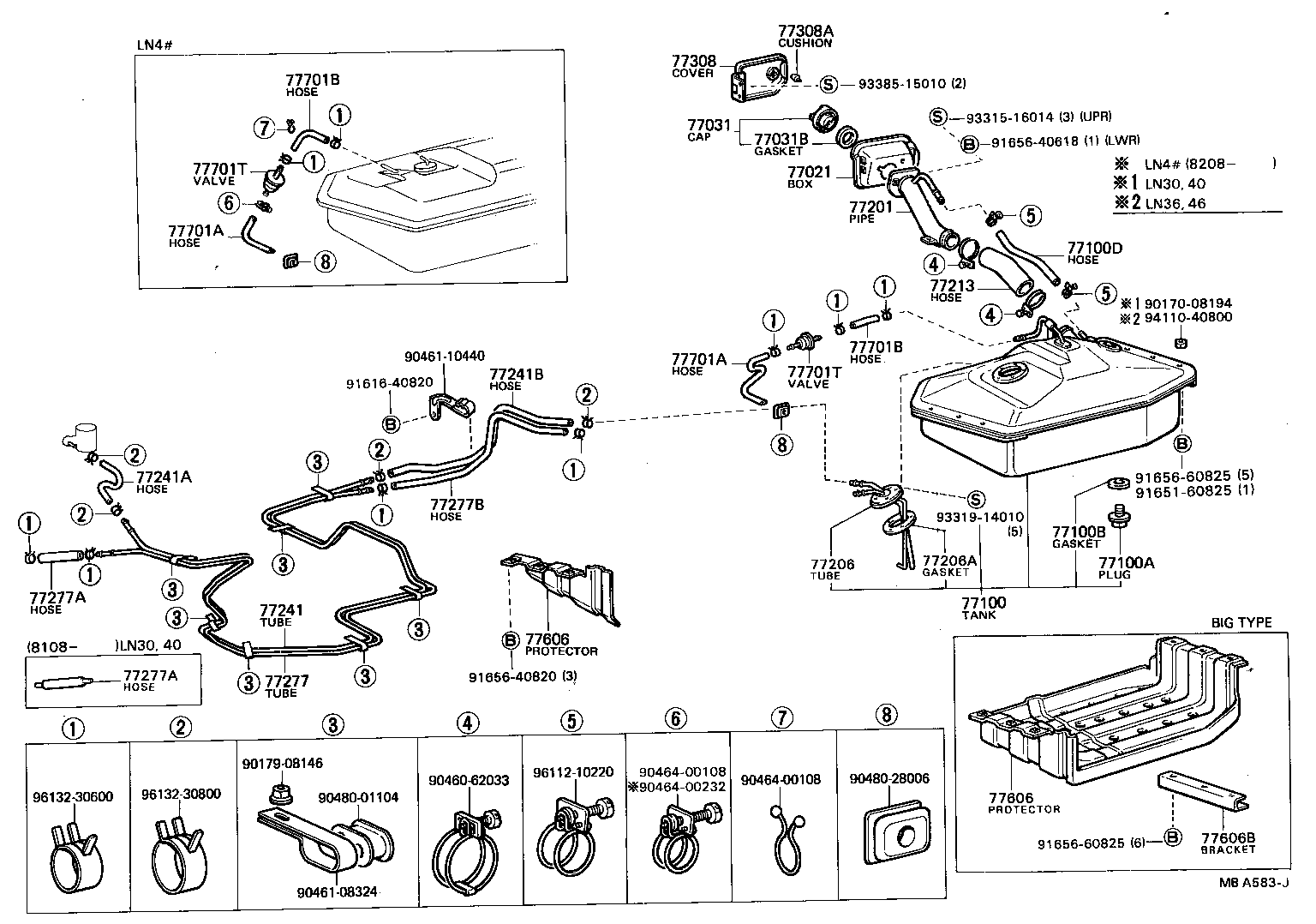

FUEL TANK TUBE

(7909- )LN3#,4#

HILUX | FUEL TANK TUBE 77021 - BOX ASSY, FUEL TANK INLET 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77241 - TUBE, FUEL MAIN, NO.1 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) 77277 - TUBE, FUEL RETURN, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77308 - COVER SUB-ASSY, FUEL INLET BOX 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 77606B - BRACKET, FUEL TANK PROTECTOR, SIDE 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) 77701A - HOSE, FUEL, NO.1 (FOR BREATHER VALVE) 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) 77701B - HOSE, FUEL, NO.2 (FOR BREATHER VALVE) 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
