TOYOTA HILUX YN57L-KD / POWERTRAIN-CHASSIS / BRAKE BOOSTER VACUUM TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE BOOSTER VACUUM TUBE

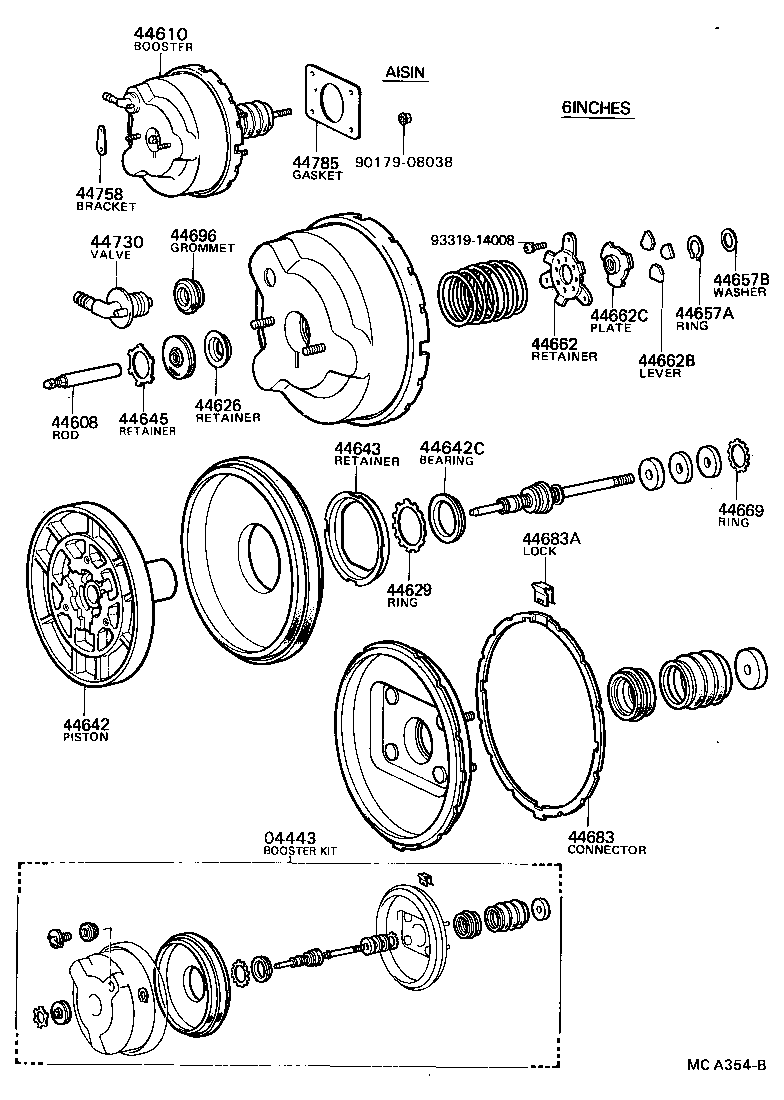

ILLUST NO. 1 OF 2(8308-8608)LN50,55,YN50,55,57..LHD..GEN

HILUX | BRAKE BOOSTER VACUUM TUBE 04443 - BOOSTER KIT, BRAKE 44608 - PUSH ROD SUB-ASSY, BOOSTER 44610 - BOOSTER ASSY, BRAKE 44626 - RETAINER, BOOSTER ROD CUP 44629 - RING, CIRCULAR INTERNAL 44642 - PISTON, BRAKE BOOSTER 44642C - BEARING, BOOSTER PISTON 44643 - RETAINER, DIAPHRAGM 44645 - RETAINER, BOOSTER PUSH ROD SEAL 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) 44662 - RETAINER, REACTION, NO.1 44662B - LEVER, REACTION 44662C - PLATE, REACTION, NO.1 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER) 44683 - CONNECTOR, BOOSTER BODY 44683A - LOCK, CONNECTOR 44696 - GROMMET, CHECK VALVE 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) 44758 - BRACKET, VACUUM CHECK VALVE 44785 - GASKET, BRAKE BOOSTER ** Std Part ** Std Part
