TOYOTA CROWN MS125L-SEPQF / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

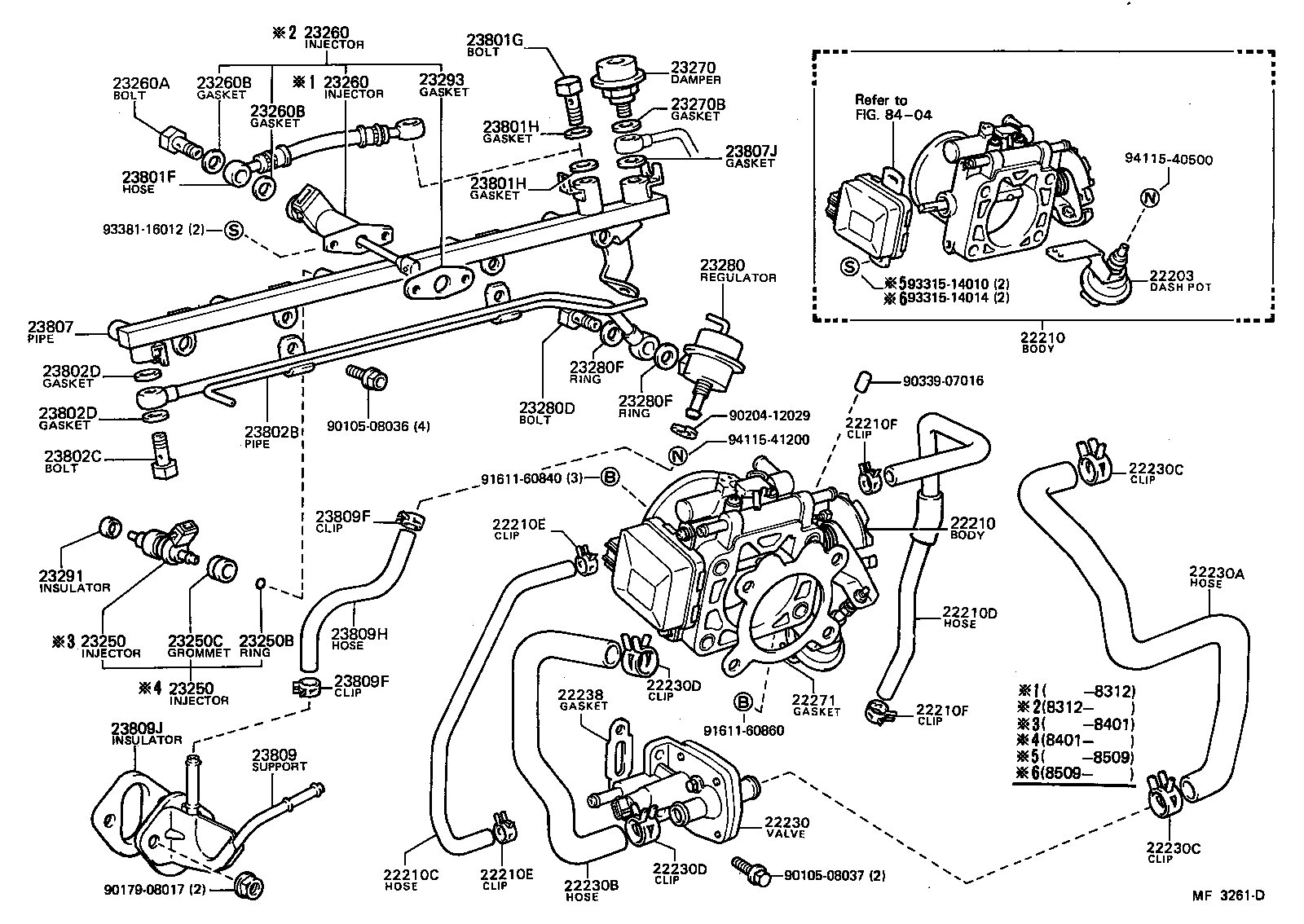

FUEL INJECTION SYSTEM

(8308-8509)5MGE,6MGE ; (8509- )6MGE

 CROWN |  FUEL INJECTION SYSTEM 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) 22210 - BODY ASSY, THROTTLE 22210 - BODY ASSY, THROTTLE 22210C - HOSE, WATER BY-PASS, NO.1 22210D - HOSE, WATER BY-PASS, NO.2 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) 22230 - VALVE ASSY, AUXILIARY AIR 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 22238 - GASKET, AUXILIARY AIR VALVE 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23260 - INJECTOR ASSY, COLD START FUEL 23260A - BOLT, UNION 23260B - GASKET 23260B - GASKET 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23801F - HOSE, FUEL, NO.1 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23802B - PIPE SUB-ASSY, FUEL, NO.2 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807J - GASKET, PIPE FUEL DELIVARY INLET 23809 - SUPPORT SUB-ASSY, FUEL PIPE 23809F - CLIP(FOR FUEL PIPE SUPPORT) 23809F - CLIP(FOR FUEL PIPE SUPPORT) 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR 23809J - INSULATOR, FUEL PIPE SUPPORT ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
