TOYOTA CAMRY VZV21R-UEPGKQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

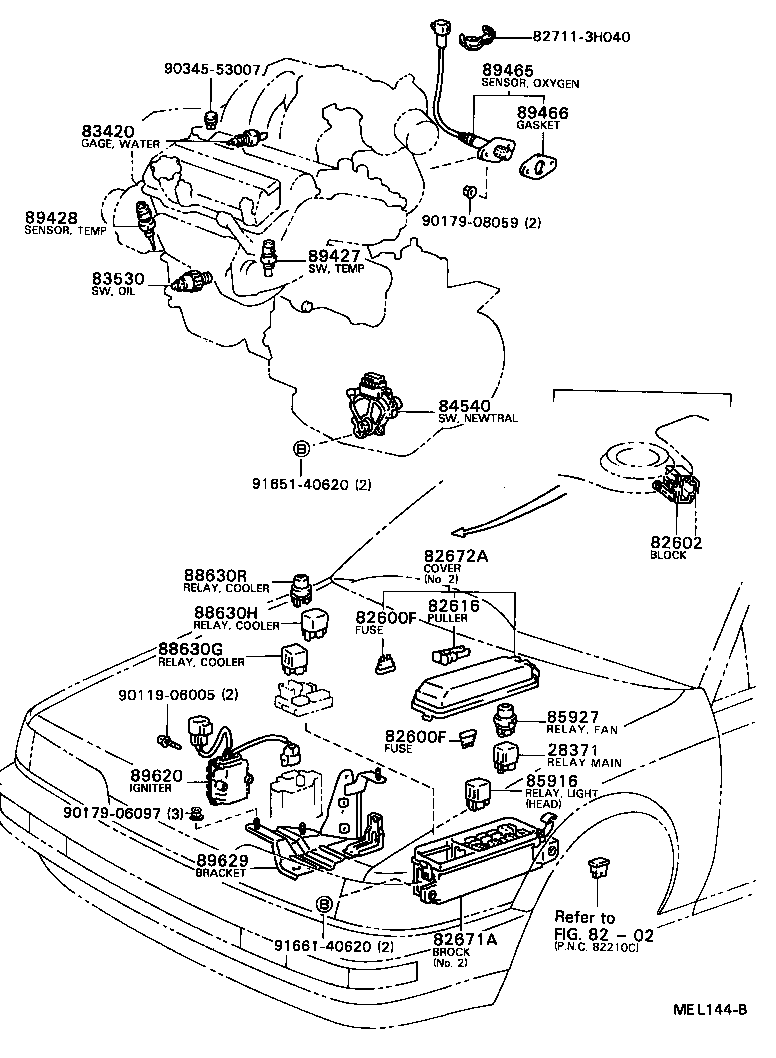

ILLUST NO. 1 OF 6(8808- )

CAMRY | SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82602 - BLOCK SUB-ASSY, RELAY 82616 - PULLER, FUSE 82671A - BLOCK, JUNCTION 82672A - COVER, JUNCTION BLOCK ** Std Part 83420 - GAGE ASSY, WATER TEMPERATURE SENDER 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84540 - SWITCH ASSY, NEUTRAL START 85916 - RELAY, LIGHT CONTROL 85927 - RELAY, COOLING FAN 88630G - RELAY ASSY, COOLER 88630H - RELAY ASSY, COOLER 88630R - RELAY ASSY, COOLER, NO.3 89427 - SWITCH, TEMPERATURE DETECT 89428 - SWITCH, TEMPERATURE DETECT, NO.2 89465 - SENSOR, OXYGEN 89466 - GASKET, OXYGEN SENSOR 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
