TOYOTA CELICA ST184R-BLPSKQ / POWERTRAIN-CHASSIS / THROTTLE LINK VALVE LEVER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

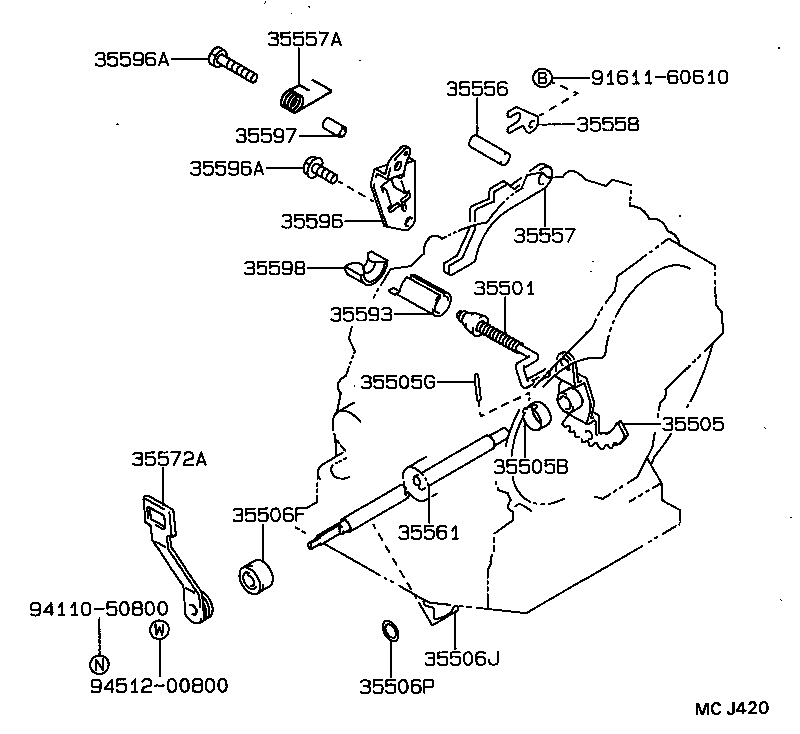

THROTTLE LINK VALVE LEVER ATM

A241L,A241E ILLUST NO. 1 OF 2(8910- )ATM

CELICA | THROTTLE LINK VALVE LEVER ATM 35501 - ROD SUB-ASSY, PARKING LOCK 35505 - LEVER SUB-ASSY, MANUAL VALVE 35505B - SPACER (FOR MANUAL VALVE LEVER) 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) 35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT) 35556 - SHAFT, PARKING LOCK PAWL 35557 - PAWL, PARKING LOCK 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) 35558 - CLAMP, PAWL SHAFT 35561 - SHAFT, MANUAL VALVE LEVER 35572A - LEVER, TRANSMISSION CONTROL SHAFT 35593 - SLEEVE, CAM GUIDE 35596 - PLATE, PAWL STOPPER 35596A - BOLT (FOR PAWL STOPPER PLATE) 35596A - BOLT (FOR PAWL STOPPER PLATE) 35597 - SLEEVE, SPRING GUIDE 35598 - SLEEVE, PARKING LOCK ** Std Part ** Std Part ** Std Part
